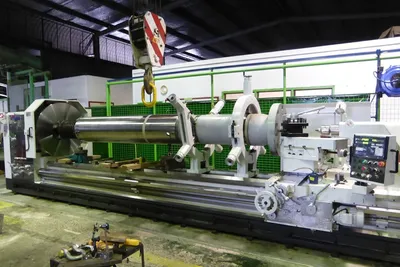

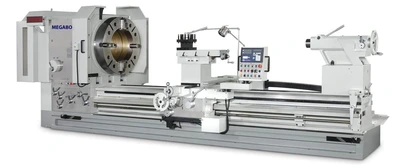

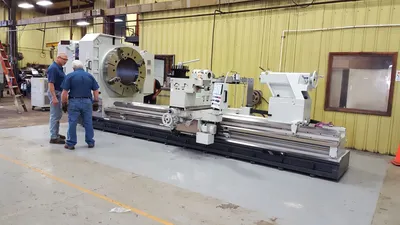

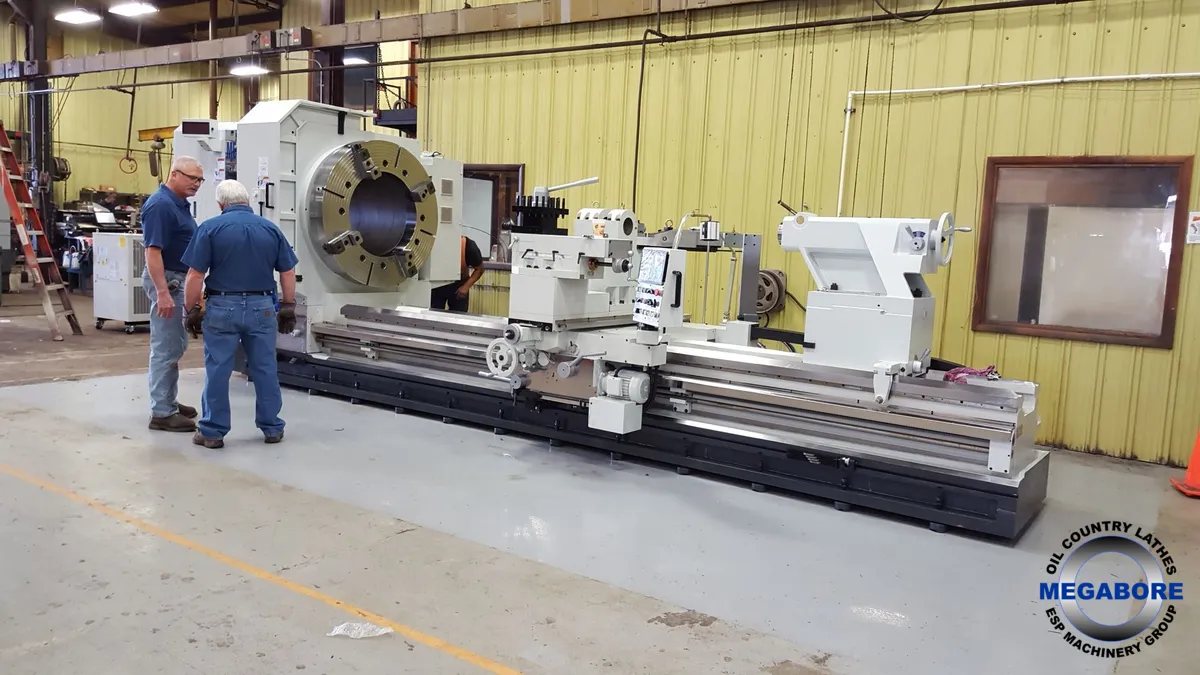

The Megabore series of heavy duty lathes are manufactured by our partner in Taiwan for distribution around the world. Most of the big producers of Oil Country supplies and hydraulic workshops have Megabore lathes.
There are 100's of our machines around the world. We keep them running with a big stock of wear parts.
Spindle Bore 410 mm
Swing over bed 1780mm
Swing over cross – slide 1460 mm
Distance between centres 6000 mm
Spindle speeds (Variable by inverter) 3-300 rpm
Cross slide travel 800 mm
Compound slide travel 300 mm
Metric Threading 1-56mm (60)
Inch Thread TPI ½-28 (60)
Module thread MOD 0.25-14 (60)
Diametric DP 2-112 (60)
Live Tailstock quill Diameter 235 mm
Tailstock travel 200 mm
Quill Taper MT6
Motor capacity 50 HP 415v 50hz
Weight of machine (approx.) 18,700 Kgs
Spindle nose A2-28
4 way Tool post 235 mm square
Hardened Bed Ways
55” Steel Body Chuck with 4 Jaw (Front & rear) 2 Sets
2 Axis – DRO with control Panel 1 Set
Front & Rear Chuck cover with limit switch 1 Set
Rear chuck adaptor 1 Set
Motorized heavy duty Tailstock body 1 Set
U-Shape 4 point steady rest 350-700mm 1 Set
6 Way rapid traverse
Auto lubrication system 1 set
Overload safety device 1 Set
Coolant System & Work light 1 Set
Stainless steel leadscrew cover 1 Set
Centre with MT#6 1 Set
Operation service manual 1 Set
Levelling Bolts & pads / Toolbox 1 set
OPTIONAL ACCESSORY IF REQUIRED
U-Shape 4 point steady rest 650-1000mm US$14,000.00
Taper turning attachment US$8,500.00
Chip conveyor with full length rear chip guard US$14,500.00
