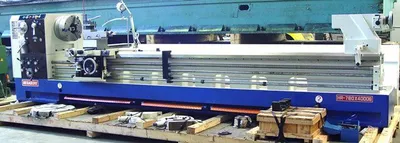

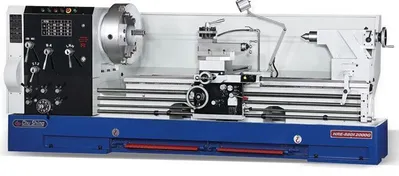

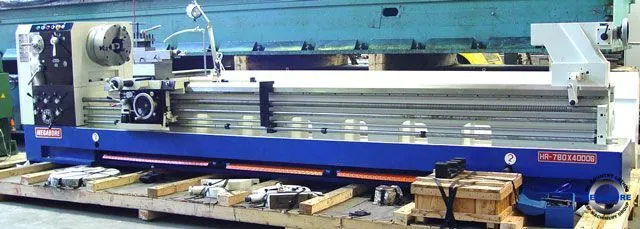

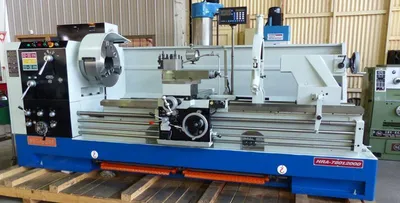

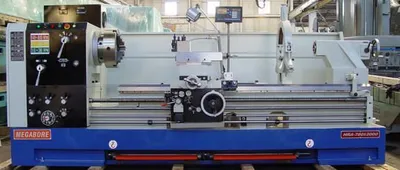

MEGABORE HR SERIES 680mm to 980mm swing x 4in to 6in bore
BED
One-piece bed is made of high compressive strength cast iron, high rigidity and stability for high precision machining.
Removable gap bed.
Bedways and slideways are harden and precision ground.
Slideways are coated with Turcite B to ensure smooth movement and minimum wear.
HEADSTOCK
All gears in headstock are made of chromium molybdenum steel,(SCM-21) with harden and precision ground.
Spindle supported at 3 pointed by precision taper roller bearings.
Forced lubricated to all gears and bearings.
GEAR BOX
Universal gear box for inch, metric,MD and PD threading without change gears.
APRON
4-way rapid traverse by the joystick, more convenient and efficient for operators.
Overload safety device is equipped to avoid machine damage.
Manual & automatic lubrication for bedways & slideways.
HR Series HR-680 HR-780 HR-880 HR-980
CAPACITY
Swing over bed 680mm(26 7/8") 780mm(30 7/8") 880mm(34 3/4") 980mm(38 3/4")
Swing over cross slide 440mm(17 3/8") 540mm(21 1/4") 640mm(25 1/4") 740mm(29 1/8")
Swing over gap 970mm(38 1/8") 1070mm(42 1/8") 1170mm(46") 1270mm(50")
Width of gap 482mm(19") 482mm(19") 482mm(19") 482mm(19")
Distance between centers 1100~8000mm(43"~315") 1100~8000mm(43"~315") 1100~8000mm(43"~315") 1100~8000mm(43"~315")
Height of center (over bed) 340mm(13 3/8") 390mm(15 3/8") 440mm(17 3/8") 490mm(19 1/4")
Bed width 458mm(18") 458mm(18") 458mm(18") 458mm(18")
HEADSTOCK
Spindle nose A2-11/D1-11 A2-11/D1-11 A2-11/D1-11 A2-11/D1-11
Spindle bore 105mm(4 1/8")/155mm(6")-OPT 105mm(4 1/8")/155mm(6")-OPT 105mm(4 1/8")/155mm(6")-OPT 105mm(4 1/8")/155mm(6")-OPT
Number of spindle speed 12 12 12 12
Range of spindle speed 15~1000rpm/14~800rpm(Ø155mm) 15~1000rpm/14~800rpm(Ø155mm) 15~1000rpm/14~800rpm(Ø155mm) 15~1000rpm/14~800rpm(Ø155mm)
FEEDS-THREAD
Lead screw diameter 45mm 45mm 45mm 45mm
Leasd screw pitch 2TPI / 12mm 2TPI / 12mm 2TPI / 12mm 2TPI / 12mm
Number of feed changes 28 28 28 28
Longitudinal feed-mm/rev(in.rev) 0.05(0.002")~0.7(0.027") 0.05(0.002")~0.7(0.027") 0.05(0.002")~0.7(0.027") 0.05(0.002")~0.7(0.027")
Cross feed -mm/rev(in.rev) 0.025(0.001")~0.35(0.014") 0.025(0.001")~0.35(0.014") 0.025(0.001")~0.35(0.014") 0.025(0.001")~0.35(0.014")
Inch threads 2~28(36) 2~28(36) 2~28(36) 2~28(36)
Metric threads 0.8~14(65) 0.8~14(65) 0.8~14(65) 0.8~14(65)
D.P no./range 4~56(36) 4~56(36) 4~56(36) 4~56(36)
Module pitch no./range 0.5~7(22) 0.5~7(22) 0.5~7(22) 0.5~7(22)
TOOL SLIDE
Cross slide travel 390mm(15 3/8") 390mm(15 3/8") 390mm(15 3/8") 520mm(20 1/2")
Compound rest travel 240mm(9 1/2") 240mm(9 1/2") 240mm(9 1/2") 240mm(9 1/2")
TAILSTOCK
Quill travel 210mm(8 1/4") 210mm(8 1/4") 210mm(8 1/4") 210mm(8 1/4")
Quill diameter 105mm(4 1/8") 105mm(4 1/8") 105mm(4 1/8") 105mm(4 1/8")
Inner taper of quill MT6 MT6 MT6 MT6
MOTOR
Main motor 15HPX4P / 20HPX4P-OPT 15HPX4P / 20HPX4P-OPT 15HPX4P / 20HPX4P-OPT 15HPX4P / 20HPX4P-OPT
Rapid feed motor 1/4 HP 1/4 HP 1/4 HP 1/4 HP
Coolant pump 1/8 HP 1/8 HP 1/8 HP 1/8 HP
Machine dimension
Length/mm(in) 1100G-2750(108");1600G-3250(128") 2000G-3750(148");3000G-4750(187") 4000G-5750(227");5000G-6750(266") 6000G-7750(305") ;8000G-9780(385")
Width/mm(in) 1300(51 1/8") 1300(51 1/8") 1300(51 1/8") 1300(51 1/8")
Height/mm(in) 1350(53 1/8") 1400(55 1/8") 1450(57 1/8") 1500(59 1/8")
N.W/kg 1100G-3300;1600G-3600
2000G-3900;3000G-4500
4000G-5100;5000G-6300
6000G-7000;8000G-8400 1100G-3400;1600G-3700
2000G-4000;3000G-4600
4000G-5200;5000G-6400
6000G-7100;8000G-8500 1100G-3500;1600G-3800
2000G-4100;3000G-4700
4000G-5300;5000G-6500
6000G-7200;8000G-8600 1100G-3600;1600G-3900
2000G-4200;3000G-4800
4000G-5400;5000G-6600
6000G-7300;8000G-8700
Packing dimension
Length/mm(in) 1100G-2900(115");1600G-3400(134") 2000G-3900(154");3000G-4900(193") 4000G-5900(232");5000G-6900(272") 6000G-7900(311");8000G-9900(390")
Width/mm(in) 1660(65 3/8") 1660(65 3/8") 1660(65 3/8") 1810(71 1/4")
Height/mm(in) 1550(61") 1600(63") 1650(65") 1700(67")
G.W/kg 1100G-3450;1600G-3800
2000G-4150;3000G-4850
4000G-5600;5000G-7000
6000G-7700;8000G-9200 1100G-3550;1600G-3900
2000G-4250;3000G-4950
4000G-5700;5000G-7100
6000G-7800;8000G-9300 1100G-3650;1600G-4000
2000G-4350;3000G-5050
4000G-5800;5000G-7200
6000G-7900;8000G-9400 1100G-3750;1600G-4100
2000G-4450;3000G-5150
4000G-5900;5000G-7300
6000G-8000;8000G-9500
ACCESSORIES AVAILABLE THAT CAN BE OFFERED WITH THIS LATHE
1 X 4-JAW INDEPENDENT CI CHUCK 25” OD - To be Quoted
1 X 3-JAW SELF CENTERING CHUCK 20” OD - To Be quoted
1 X FIXED STEADY REST 70 TO 250 MM To be quoted
1 X FOLLOW STEADY REST
TAPER TURNING ATTACHMENT
2 X AXIS DIGITAL READ OUT (DRO)
FULL LENGTH REAR SPLASH GUARD
4-WAY TOOL POST, 1 X DEAD CENTER-
THREAD CHASING DIAL
4 WAY RAPID TRAVERSE
COOLANT SYSTEM
WORK LIGHT, FOOT BRAKE
15 HP SPINDLE MOTOR
LEVELLING BOLTS, FOUNDATION BLOCKS & TOOL BOX
MACHINE OPERATION & MAINTENANCE MANUAL
STANDARD ACCESSORIES
Center sleeve 1 pc
Dead center MT5& MT6 1 pc
Coolant pump 1set
Work light 1 pc
Tool box &tool 1 set
Steady Rest Ø280mm(11") 1 pc
4 ways rapid traverse device 1 set
OPTION ACCESSORIES
12"/15" 3-jaw scroll chuck 1 pc
15"/20" 4-jaw independent chuck 1 pc
Taper turning attachment 1 pc
Follow rest 1 pc
Face plate 1 pc
Steady rest Ø420mm(16") 1 pc
Steady rest Ø560mm(22") 1 pc
Rear splash guard 1 pc
Rear adapter plate 1 pc
Electromagnetic brake 1PC
12 MONTHS WARRANTY
