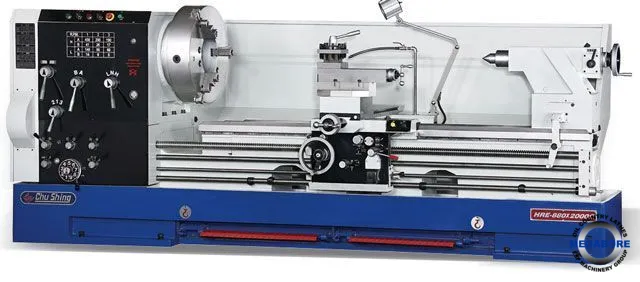

Not your average medium lathe this is a European quality machine.
Spindle bore: 230mm(9")
Spindle speed: 12 steps
Bed width: 458mm(18")
Distance between centers: 1100mm(43")~8000mm(315")
Heavy-duty bed structure made from high-quality cast iron for exceptional rigidity and vibration dampening.
Wide bed design ensures stability and precision during heavy cutting operations.
High-torque spindle system for smooth and powerful performance, capable of handling large-diameter and heavy workpieces.
Versatile machining capabilities, including turning, threading, facing, and boring, for a variety of industrial applications.
Precision feed and threading system for accurate and consistent machining results.
Robust tailstock with easy adjustment to support long and heavy workpieces.
User-friendly control panel for intuitive operation and quick setup.
Built with premium materials for long-term durability and reliability in demanding environments.
Designed for continuous operation, suitable for high-volume production.
Spindle bore: 230mm(9")
Spindle speed: 12 steps
Bed width: 458mm(18")
Distance between centers: 1100mm(43")~8000mm(315")
Heavy-duty bed structure made from high-quality cast iron for exceptional rigidity and vibration dampening.
Wide bed design ensures stability and precision during heavy cutting operations.
High-torque spindle system for smooth and powerful performance, capable of handling large-diameter and heavy workpieces.
Versatile machining capabilities, including turning, threading, facing, and boring, for a variety of industrial applications.
Precision feed and threading system for accurate and consistent machining results.
Robust tailstock with easy adjustment to support long and heavy workpieces.
User-friendly control panel for intuitive operation and quick setup.
Built with premium materials for long-term durability and reliability in demanding environments.
Designed for continuous operation, suitable for high-volume production.
BED
One-piece bed is made of high compressive strength cast iron, high rigidity and stability for high precision machining.
Removable gap bed.
Bedways and slideways are harden and precision ground.
Slideways are coated with Turcite B to ensure smooth movement and minimum wear.
HEADSTOCK
All gears in headstock are made of chromium molybdenum steel,(SCM-21) with harden and precision ground.
Spindle supported at 3 pointed by precision taper roller bearings.
Forced lubricated to all gears and bearings.
GEAR BOX
Universal gear box for inch, metric, MD and PD threading without change gears.
APRON
4-way rapid traverse by the joystick, more convenient and efficient for operators.
Overload safety device is equipped to avoid machine damage.
Manual & automatic lubrication for bedways & slideways.
HRE Series HRE-880 HRE-980
CAPACITY
Swing over bed 880mm(34 3/4") 980mm(38 3/4")
Swing over cross slide 640mm(25 1/4") 740mm(29 1/8")
Swing over gap 1170mm(46") 1270mm(50")
Width of gap 482mm(19") 482mm(19")
Distance between centers 1100~8000mm(43"~315") 1100~8000mm(43"~315")
Height of center (over bed) 440mm(17 3/8") 490mm(19 1/4")
Bed width 458mm(18") 458mm(18")
HEADSTOCK
Spindle nose A2-15 A2-15
Spindle bore 230mm(9") 230mm(9")
Number of spindle speed 12 12
Range of spindle speed 5~450rpm 5~450rpm
FEEDS-THREAD
Lead screw diameter 45mm 45mm
Leasd screw pitch 2TPI / 12mm 2TPI / 12mm
Number of feed changes 28 28
Longitudinal feed-mm/rev(in.rev) 0.05(0.002")~0.7(0.027") 0.05(0.002")~0.7(0.027")
Cross feed -mm/rev(in.rev) 0.025(0.001")~0.35(0.014") 0.025(0.001")~0.35(0.014")
Inch threads 2~28(36) 2~28(36)
Metric threads 0.8~14(65) 0.8~14(65)
D.P no./range 4~56(36) 4~56(36)
Module pitch no./range 0.5~7(22) 0.5~7(22)
TOOL SLIDE
Cross slide travel 390mm(15 3/8") 520mm(20 1/2")
Compound rest travel 240mm(9 1/2") 240mm(9 1/2")
TAILSTOCK
Quill travel 210mm(8 1/4") 210mm(8 1/4")
Quill diameter 105mm(4 1/8") 105mm(4 1/8")
Inner taper of quill MT6 MT6
MOTOR
Main motor 20HPX4P 20HPX4P
Rapid feed motor 1/4 HP 1/4 HP
Coolant pump 1/8 HP 1/8 HP
Machine dimension
Length/mm(in) 1100G-2900(114");1600G-3400(134");2000G-3900(154");
3000G-4900(193");4000G-5900(232");5000G-6900(272");
6000G-7900(311");8000G-9940(391") 1100G-2900(114");1600G-3400(134");2000G-3900(154");
3000G-4900(193");4000G-5900(232");5000G-6900(272");
6000G-7900(311");8000G-9940(391")
Width/mm(in) 1300(51 1/8") 1450(57 1/8")
Height/mm(in) 1500(59 1/8") 1550(61 1/8")
N.W/kg 1100G-4100;1600G-4400
2000G-4700;3000G-5300
4000G-5900;5000G-7100
6000G-7800;8000G-9200 1100G-4250;1600G-4550
2000G-4850;3000G-5450
4000G-6050;5000G-7150
6000G-7950;8000G-9350
Packing dimension
Length/mm(in) 1100G-3000(118");1600G-3500(138")
2000G-4000(157");3000G-5020(198")
4000G-6020(237");5000G-7020(276")
6000G-8030(316");8000G-10050(396") 1100G-3000;1600G-3500
2000G-4000;3000G-5020
4000G-6020;5000G-7020
6000G-8030;8000G-10050
Width/mm(in) 1660(65 3/8") 1810(71 1/4")
Height/mm(in) 1700(67") 1750(69")
G.W/kg 1100G-4250;1600G-4600
2000G-4950;3000G-5650
4000G-6400;5000G-7800
6000G-8500;8000G-10000 1100G-4400;1600G-4750
2000G-5100;3000G-5800
4000G-6550;5000G-7950
6000G-8650;8000G-10150
STANDARD ACCESSORIES
Center sleeve 1 pc
Dead center MT5& MT6 1 pc
Coolant pump 1set
Work light 1 pc
Tool box &tool 1 set
Tool post wrench 1 pc
Steady Rest Ø280mm(11") 1 pc
4 ways rapid traverse device 1 set
20"/25" 3-jaw scroll chuck 1 pc
25"/32" independent chuck 1 pc
Taper turning attachment 1 pc
Follow rest 1 pc
Face plate 1 pc
Steady rest Ø420mm(16") 1 pc
Steady rest Ø560mm(22") 1 pc
Rear splash guard 1 pc
Rear adapter plate 1 pc
