HMC High Performance CNC, 500mm Twin Pallet
$315,900.00 USD
New

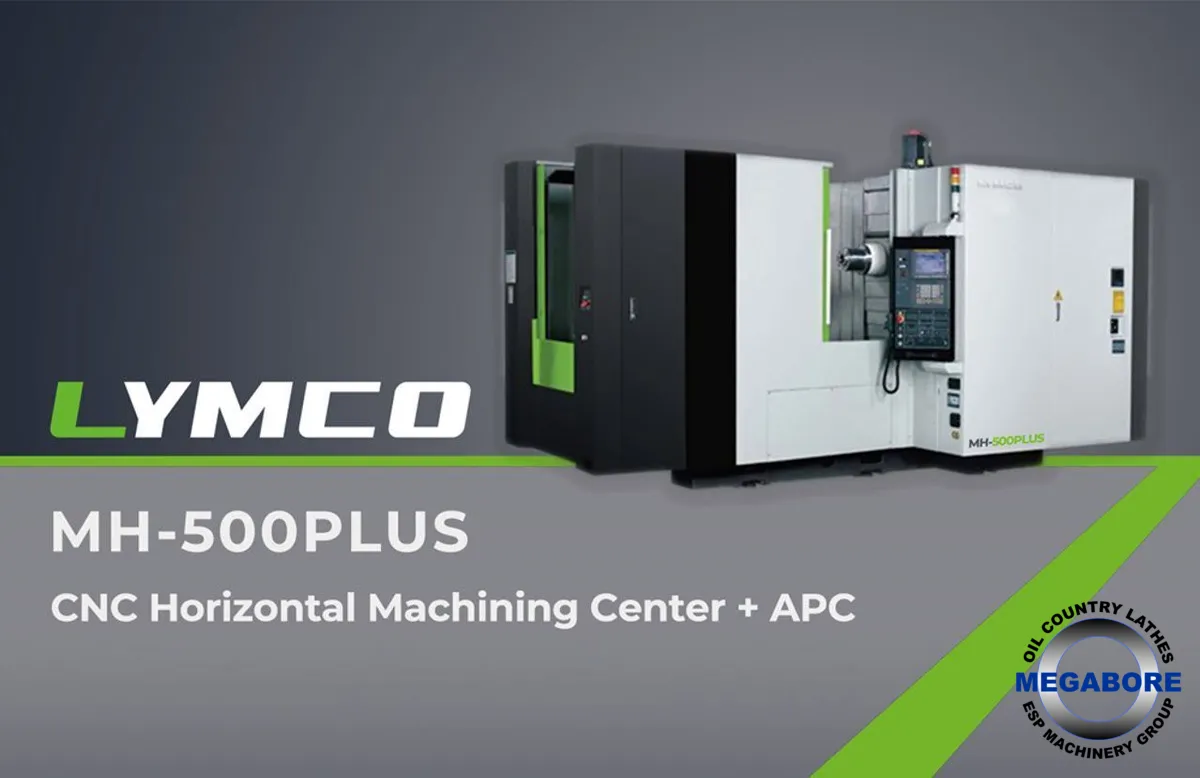

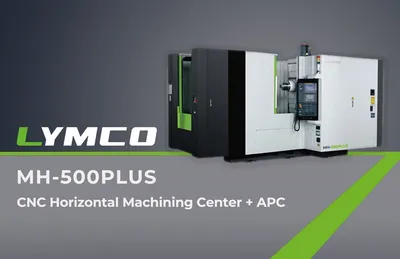

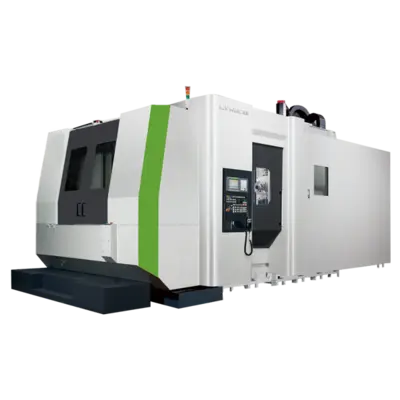

The MH-500Plus Twin Pallet is designed for high precision and stable machining performance.
Box-in-box column structure for excellent rigidity
Dual ballscrews on X axis.
Roller type linear guideways on all 3 axes for high load capacity and rigidity
Superb tool change time in 1 second tool to tool and 3 second chip to chip on all MH-PLUS horizontal machining centers.
The rapid cutting and feeding of up to 60 meters per minute.
Structure rigidity decided the actual cutting result and the optimal speed of processes. Thus, on all MH-PLUS HMC, a box-in-box design for column and saddle were employed for best structural strength.
Table dimension: 500x500mm
Max. loading capacity: 500 kg
Pallet number: 2 unit
X axis travel: 800 mm
Y axis travel: 650 mm
Z axis travel: 800 mm
Spindle nose to table surface: 50~700mm
Spindle center to table center: 150~950mm
Work envelop: Ø780x750mm
Index table (B axis) : 0.001°/35rpm
Max. Spindle speed: BT50/10000rpm by direct driven
Spindle motor : Fanuc αi15/10000T, 15/18.5 kW
Rapid feed rate on X, Y and Z axis : 48,000 mm/min
Cutting feed rate : 1-24,000 mm/min
Minimum input increment : 0.001 mm/min
ATC : 40 pcs
Standard Equipment
2 pallets changer
Index table 0.001 degree
Lubrication system
Fully enclosed splash guard
Link-type chip conveyor + chip bucket
Coolant Equipment
Pneumatic unit
Spindle oil cooler
Rigid tapping
40 tool ATC
Driller & Tapped Pallet
Work lamp
Auto power-off
Manual pulse generator
Program end & alarm lamp
Coolant and air washing guns
CE certificate
Leveling block and bolts
Tool kit
One year warranty for basic machine, and two years for controller
Maintenance and operation manuals
Transformer
OPTIONAL ACCESSORIES
Coolant Through Spindle USD
1.1 CTS (20kg/cm2) with water tank and filter with centrifugal cleaner for direct driven motor
US$$9,360
Optical Scale & Encoder
2.1 Heidenhain optical scales (ABS) on X/Y/Z axes $15,925
2.2 Heidenhain angle encoder – RCN223F (ABS), ±5” accuracy on B axis
US$7,956
ATC
3.1 BT50: ATC 60 pcs (Tool door opening and changing non-synchronous)
US$15,353
Others
4.1 Air conditioner for electrical cabinet
US$$2,262
4.2 Oil skimmer
US$8,06
Measurement Equipment
5.1 Renishaw NC4
Non-contact laser tool setter, w/o training
A range of non-contact tool setting and broken tool
detection system for machining centers
US$9,022
5.2 Renishaw RMP60
Optical transmission probe
A compact 3D touch-trigger probe with optical signal transmission that is used for workpiece set-up inspection, w/o training
US$9,958
Prices subject to change
