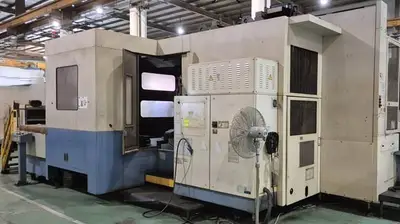

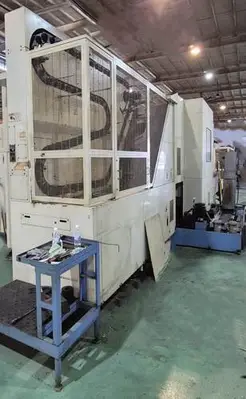

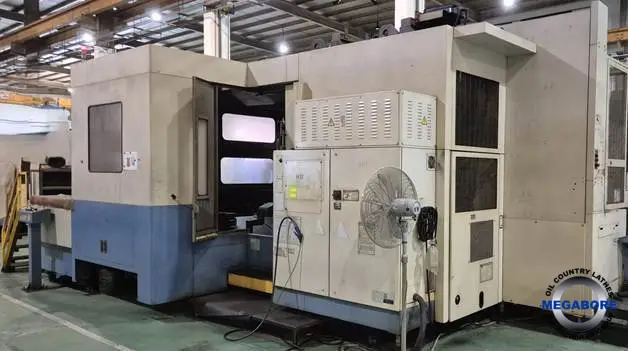

HMC 2002 MAZAK MAZATECH FH-1080 Twin Pallet 1000mm x 1000mm
$195,000.00 AUD

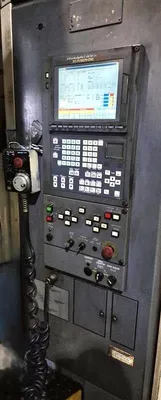

The Mazak FH-1080 is a heavy-duty 4-axis horizontal machining center featuring a 1000mm pallet, typically equipped with a CAT 50 taper spindle, 7,000–10,000 RPM, and large travels (approx. 66" x 55" x 60"). Designed for large parts, it features high torque and a 120-160+ tool capacity, often with the Mazatrol Fusion 640M control.
Mazak FH-10800 Machine Specifications
1. Axis and Capacity
X-Axis Travel: 1,700 mm (66.93")
Y-Axis Travel: 1,400 mm (55.12")
Z-Axis Travel: 1,525 mm (60.04")
Pallet Size: 1,000 mm x 1,000 mm (39.37" x 39.37")
Maximum Workpiece Diameter: 2,050 mm (80.71")
Maximum Workpiece Height: 1,600 mm (62.99")
Maximum Pallet Load: 3,000 kg (6,614 lbs)
2. Spindle Details
Spindle Taper: CAT 50 / BT 50 / HSK-A100
Spindle Speed: 7,000 RPM (Standard)
Spindle Motor (30 min): 37.0 kW (50.0 hp)
Spindle Motor (Continuous): 30.0 kW (40.0 hp)
Maximum Torque: 1,162.0 Nm (857.0 ft-lbs)
3. Tooling and ATC
Tool Storage Capacity: 40 / 80 / 120 Tools
Maximum Tool Diameter: 135 mm (5.31")
Max Tool Diameter (Adjacent Empty): 260 mm (10.24")
Maximum Tool Length: 650 mm (25.59")
Maximum Tool Weight: 30 kg (66.14 lbs)
4. Motion and Feedrates
Rapid Traverse (X/Y/Z): 40,000 mm/min (1,575 IPM)
Pallet Change Time: 16.0 Seconds
Tool Change Time (Chip to Chip): 6.5 Seconds
5. Machine Dimensions
Machine Height: 4,310 mm (169.69")
Floor Space Requirement: 5,860 mm x 8,360 mm (230.7" x 329.1")
Total Machine Weight: 30,500 kg (67,241 lbs)
