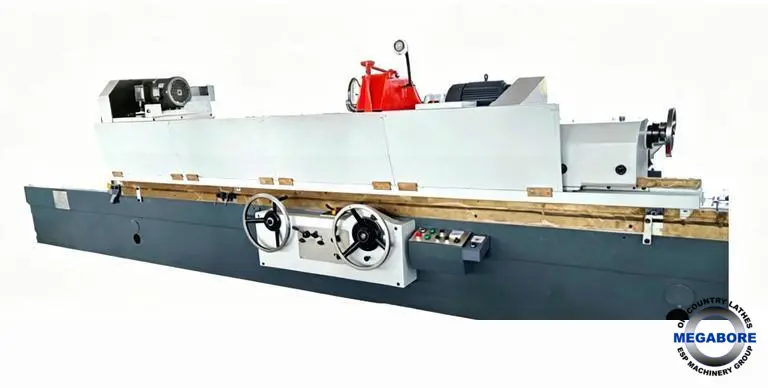

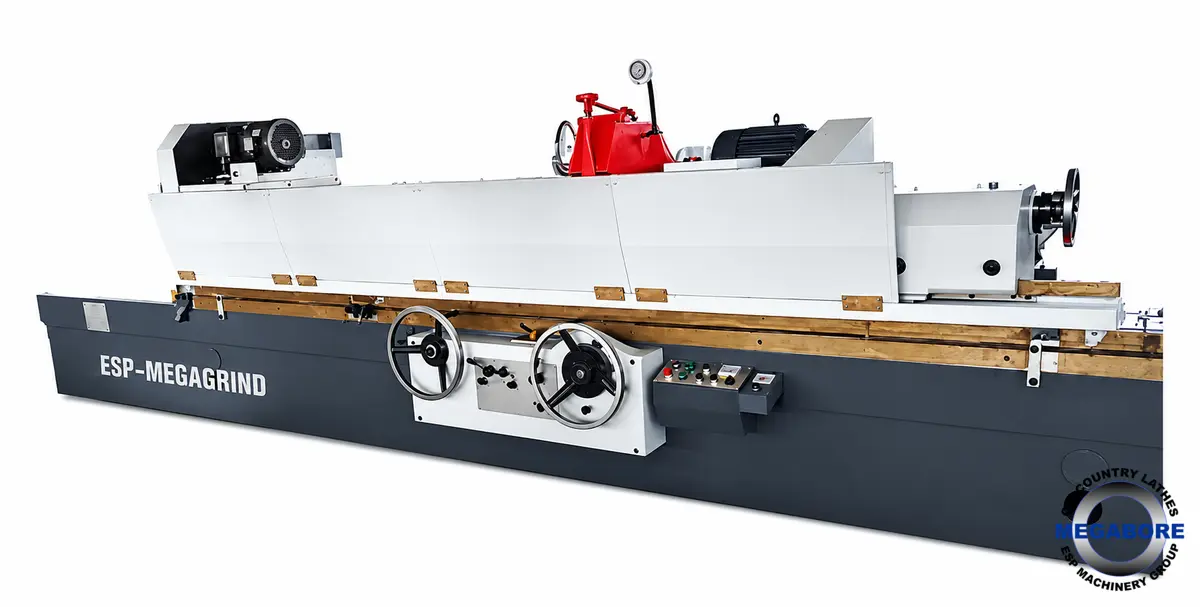

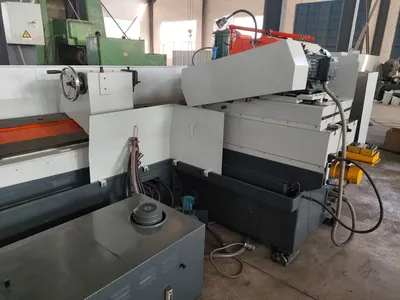

ESP-Megagrind SP1350x3000 | Cylindrical Grinders Including Plain & Angle Head
$186,000.00 AUD
New
ESP-Megagrind SP1350x3000, new plain cylindrical grinder, features a 19.685" swing, 118" centers, 27.6393 kW power, 29.5276" wheel diameter, and supports up to 2204.62 lbs between centers. Ideal for precision tasks.
Max. grinding dia. × max. grinding length: Φ500×3000mm
Center height: 270mm
Distance between centers: 3000mm
Grindable external diameter: Φ25‑Φ500mm
Steady rest support diameter: Φ50‑Φ200mm
Max. grinding length(truing on tailstock): 2750mm
Max. workpiece weight: 2000Kg
Max. grinding length: 3000mm
Upper table swivel angle: CW 2°, CCW 3°
Hydraulic travel speed: 0.1‑3m/min
Max. longitudinal travel: 3100mm
Table travel per handwheel rev.: 5mm
Headstock & Tailstock
Headstock spindle/base non‑swivelable
Drive plate speed(50Hz): Stepless speed
Tailstock quill travel: 70mm
Headstock center: MT #6
Tailstock center: MT #6
Max. screw travel: 250mm
Rapid advance & retract: 100mm
Spindle speed: Stepless speed
Wheel peripheral speed: 35m/s
Feed per handwheel rev.: Coarse 4mm / Fine 0.5mm
Scale graduation: Coarse 0.02mm / Fine 0.0025mm
Grinding wheel size: Φ750×75×Φ305mm
Wheel head adjustment: Forward 150mm; Rear flush with intermediate
base
Functions: Auto periodic feed Yes; Auto plunge feed No; Dressing
compensation No
Oil pump model: GPA2 ‑16‑E‑20‑P
Main system pressure: 1.5‑2.0MPa
Auxiliary system pressure: 0.5‑0.7MPa
Lubrication circuit pressure: 0.4‑0.6MPa
Coolant pump flow: 100L/min
Total installed power: 25.5kW
Grinding wheel motor:15kW
Hydraulic pump motor:1.1kW
Coolant pump motor:0.5kW
Headstock motor:5.5kW
Magnetic separator motor:0.3kW
Weight 12,330kg
ESP-Megagrind SP1350x3000, new plain cylindrical grinder, features a 19.685" swing, 118" centers, 27.6393 kW power, 29.5276" wheel diameter, and supports up to 2204.62 lbs between centers. Ideal for precision tasks.
Metric
| Swing | 500 mm |
| Centers | 2,997.2 mm |
| Plain or Angle Head | Plain |
| Grinding Wheel Dia. | 750 mm |
| Wheel Power | 27.6 kW |
| Wheel Speed | 891.3 RPM |
| Plunge | No |
| Dresser | No |
| Dimensions | LxWxH 9500x2140x1650mm |
| Weight | 12350kg |
Max. grinding dia. × max. grinding length: Φ500×3000mm
Center height: 270mm
Distance between centers: 3000mm
Grindable external diameter: Φ25‑Φ500mm
Steady rest support diameter: Φ50‑Φ200mm
Max. grinding length(truing on tailstock): 2750mm
Max. workpiece weight: 2000Kg
Max. grinding length: 3000mm
Upper table swivel angle: CW 2°, CCW 3°
Hydraulic travel speed: 0.1‑3m/min
Max. longitudinal travel: 3100mm
Table travel per handwheel rev.: 5mm
Headstock & Tailstock
Headstock spindle/base non‑swivelable
Drive plate speed(50Hz): Stepless speed
Tailstock quill travel: 70mm
Headstock center: MT #6
Tailstock center: MT #6
Max. screw travel: 250mm
Rapid advance & retract: 100mm
Spindle speed: Stepless speed
Wheel peripheral speed: 35m/s
Feed per handwheel rev.: Coarse 4mm / Fine 0.5mm
Scale graduation: Coarse 0.02mm / Fine 0.0025mm
Grinding wheel size: Φ750×75×Φ305mm
Wheel head adjustment: Forward 150mm; Rear flush with intermediate
base
Functions: Auto periodic feed Yes; Auto plunge feed No; Dressing
compensation No
Oil pump model: GPA2 ‑16‑E‑20‑P
Main system pressure: 1.5‑2.0MPa
Auxiliary system pressure: 0.5‑0.7MPa
Lubrication circuit pressure: 0.4‑0.6MPa
Coolant pump flow: 100L/min
Total installed power: 25.5kW
Grinding wheel motor:15kW
Hydraulic pump motor:1.1kW
Coolant pump motor:0.5kW
Headstock motor:5.5kW
Magnetic separator motor:0.3kW
Weight 12,330kg
