Huron NU4 Table 1430mm x 460mm
$18,500.00 AUD

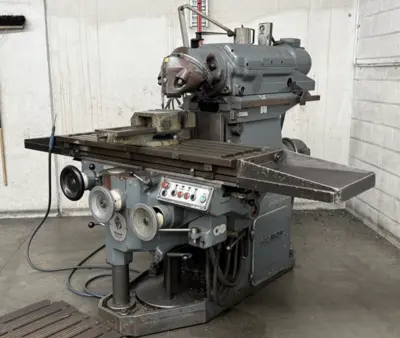

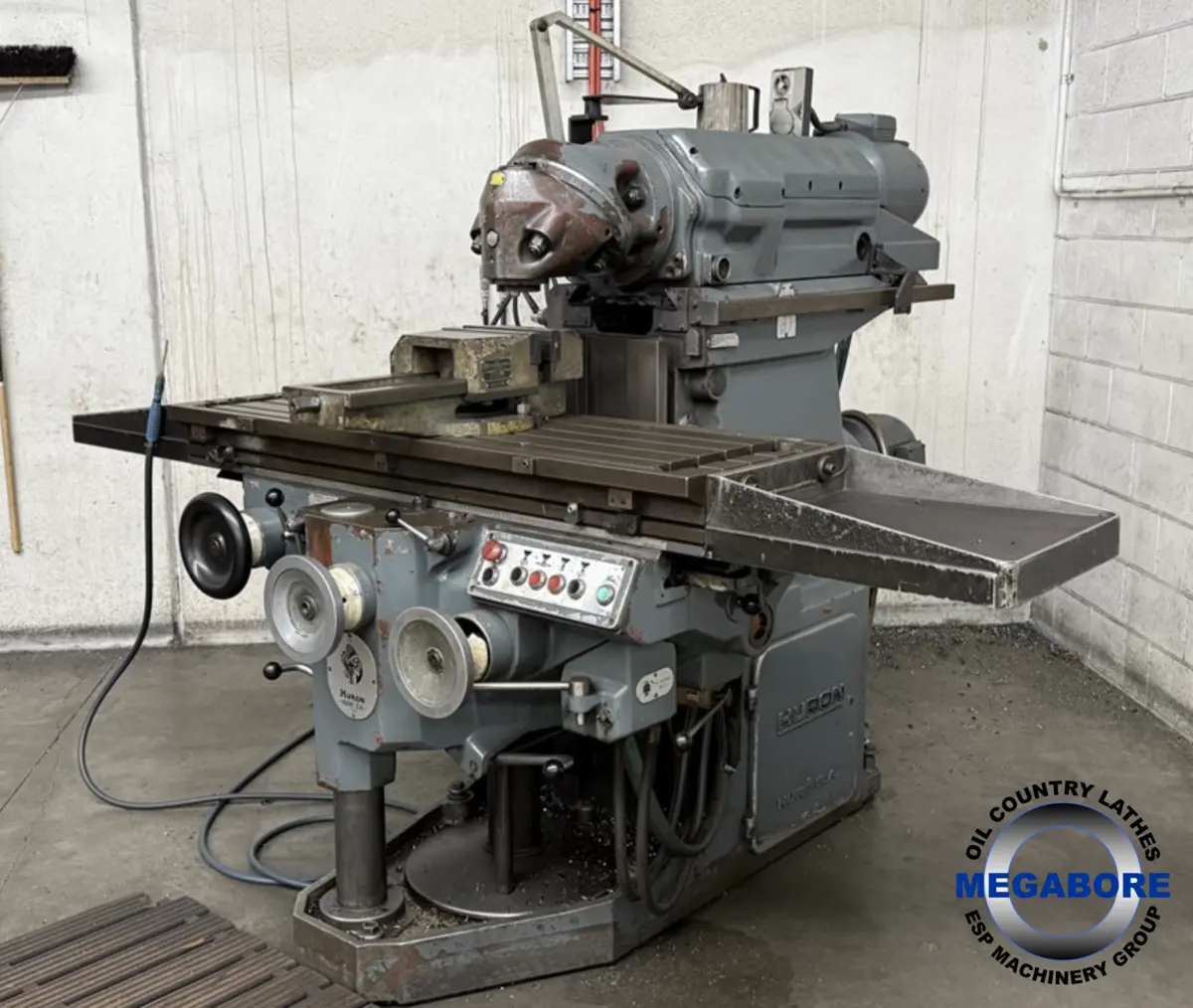

The Huron NU4 Universal Milling Machine is a very well-regarded French-built universal milling machine, popular in toolrooms and general engineering shops.
Universal swivelling head allowing compound angle machining.
Horizontal and vertical milling capability.
Heavy, rigid construction suitable for toolroom and production work.
Hydraulic feeds and rapids on many machines.
Excellent reputation for accuracy and smooth operation.
Specification Huron NU4
Table size 1,430–1,435 x 460 mm
X travel (longitudinal) 1,100 mm
Y travel (cross) 700 mm
Z travel (vertical) 500–550 mm
Spindle taper ISO 40 / SA40
Spindle speeds 27 speeds, 30–2,066 rpm
Feed rates 1.6–820 mm/min
Rapid traverse X & Y: 2,800 mm/min, Z: 1,400 mm/min
Spindle head swivel 360°
Table load capacity Up to 1,500–2,000 kg (depending on version)
Main motor 7.5–8.8 kW (10–12 HP)
Machine weight Approximately 3.1–4.0 tonnes
Prices are PLUS GST for Australian Buyers
The Huron NU4 Universal Milling Machine is a very well-regarded French-built universal milling machine, popular in toolrooms and general engineering shops.
Universal swivelling head allowing compound angle machining.
Horizontal and vertical milling capability.
Heavy, rigid construction suitable for toolroom and production work.
Hydraulic feeds and rapids on many machines.
Excellent reputation for accuracy and smooth operation.
Metric
| Table Size-W | 460 mm |
| Table Size-L | 1,430 mm |
| Power | 8 kW |
Specification Huron NU4
Table size 1,430–1,435 x 460 mm
X travel (longitudinal) 1,100 mm
Y travel (cross) 700 mm
Z travel (vertical) 500–550 mm
Spindle taper ISO 40 / SA40
Spindle speeds 27 speeds, 30–2,066 rpm
Feed rates 1.6–820 mm/min
Rapid traverse X & Y: 2,800 mm/min, Z: 1,400 mm/min
Spindle head swivel 360°
Table load capacity Up to 1,500–2,000 kg (depending on version)
Main motor 7.5–8.8 kW (10–12 HP)
Machine weight Approximately 3.1–4.0 tonnes
Prices are PLUS GST for Australian Buyers
