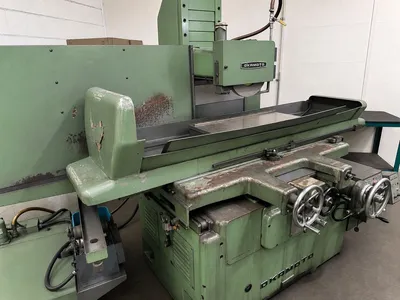

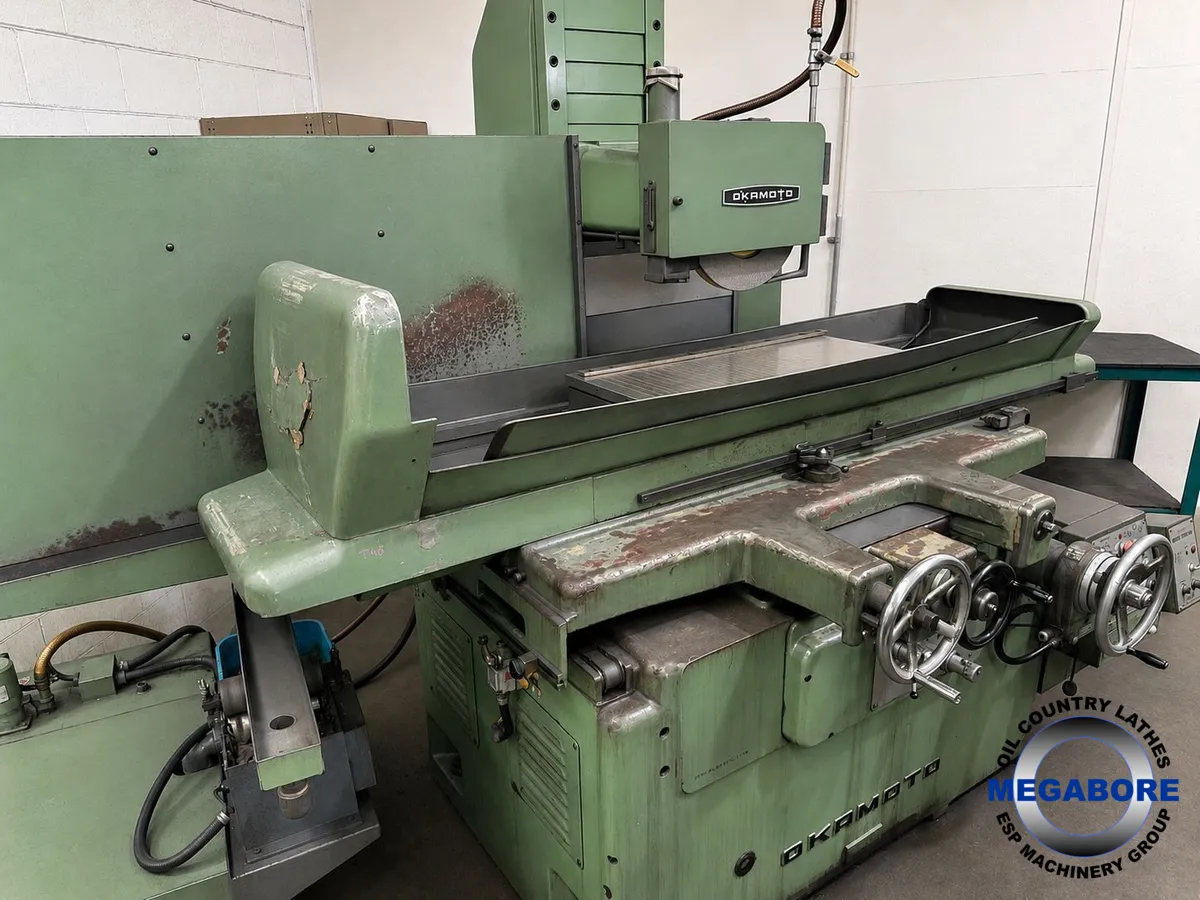

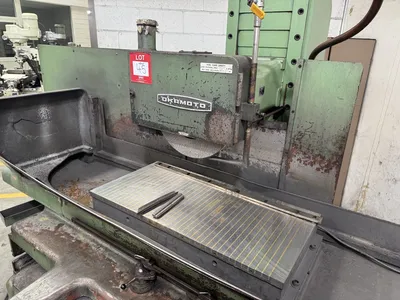

OKAMOTO surface grinder 800mm x 400mm magnetic chuck
$14,000.00 AUD
The PSG-84 is one of Okamoto's most successful hydraulic automatic surface grinders. The "84" denotes an 800 × 400 mm (32" × 16") magnetic chuck size. This machime was being used in a Toolroom right up to the time we removed it for re-sale.
Specification Approximate
Magnetic chuck 800 × 400 mm (32" × 16")
Table size About 1,000 × 400 mm
Longitudinal travel 900–950 mm
Cross travel 430–440 mm
Maximum wheel to table 450–500 mm
Grinding wheel 355 × 38 × 127 mm
Spindle motor 5.5–7.5 hp
Machine weight 3.2–3.8 tonnes
Prices are PLUS GST for Australian Buyers
The PSG-84 is one of Okamoto's most successful hydraulic automatic surface grinders. The "84" denotes an 800 × 400 mm (32" × 16") magnetic chuck size. This machime was being used in a Toolroom right up to the time we removed it for re-sale.
Metric
| Table-W | 449.3 mm |
| Table-L | 848.66 mm |
| Horz/Vert | Horz |
| Power | 3.7 kW |
| Grinding Wheel Width | 38 mm |
Specification Approximate
Magnetic chuck 800 × 400 mm (32" × 16")
Table size About 1,000 × 400 mm
Longitudinal travel 900–950 mm
Cross travel 430–440 mm
Maximum wheel to table 450–500 mm
Grinding wheel 355 × 38 × 127 mm
Spindle motor 5.5–7.5 hp
Machine weight 3.2–3.8 tonnes
Prices are PLUS GST for Australian Buyers
