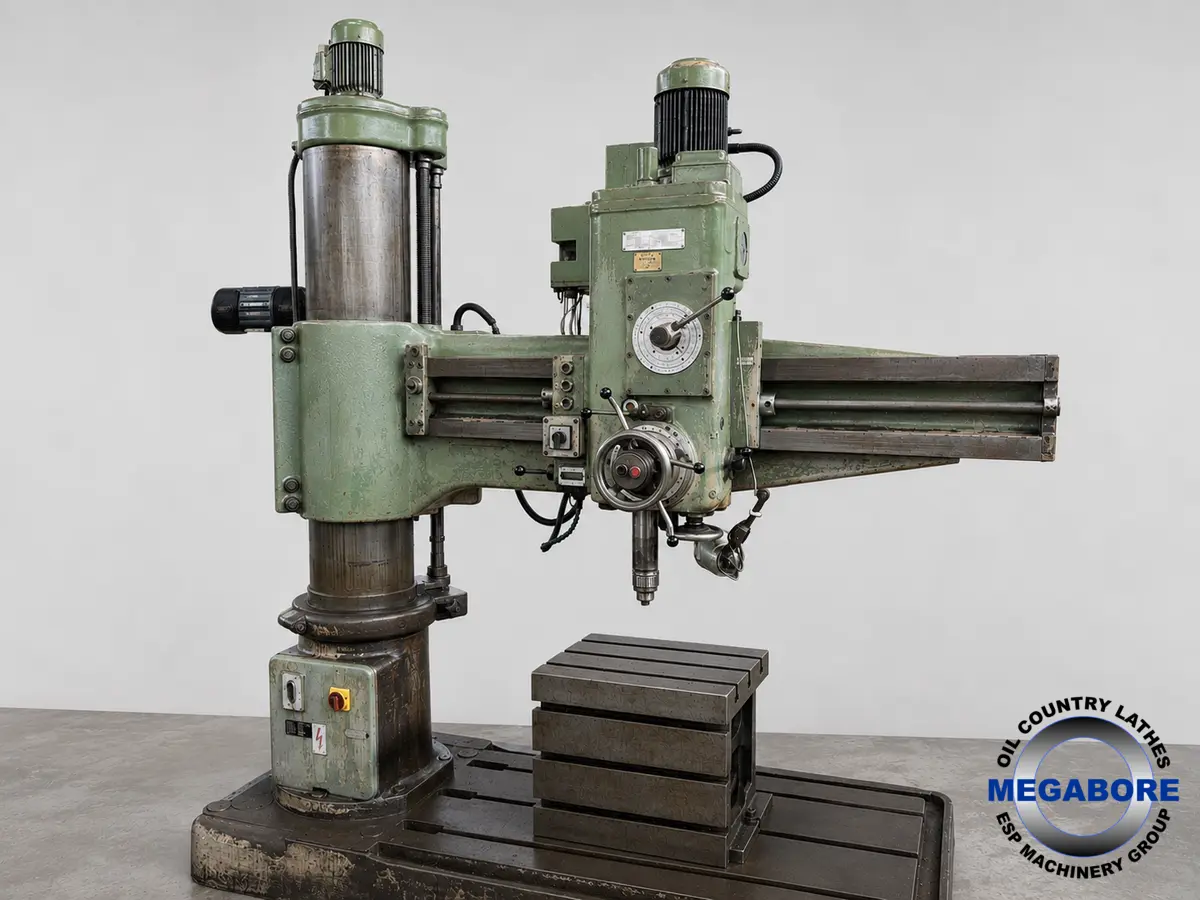

HMT RM/63 Hydraulic Radial Arm Drill 5MT x 1790mm Arm
$9,500.00 AUD
The HMT RM/63 is a heavy-duty hydraulic radial arm drilling machine designed for demanding industrial applications. Manufactured by HMT to a proven European design, this model is renowned for its rigidity, reliability and ease of operation.
Featuring hydraulic arm and drill head clamping, power spindle feeds and a robust MT5 spindle, the RM/63 is ideally suited to drilling, tapping, reaming and boring large fabrications, castings and steel components.
Its heavy cast construction and generous working envelope make it an excellent choice for engineering workshops, maintenance departments, fabrication facilities and general manufacturing.
Features
63 mm drilling capacity in steel
Hydraulic arm clamping

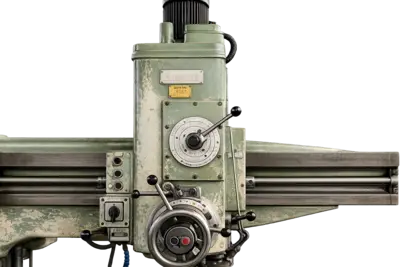

Hydraulic drill head clamping
MT5 spindle
Six power feeds
Twelve spindle speeds
Heavy-duty cast iron construction

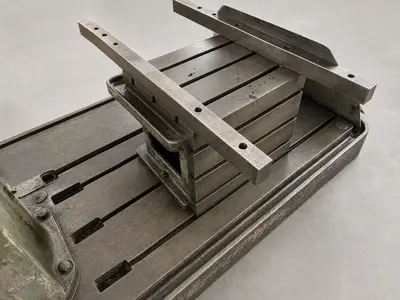

Large capacity box table
Coolant equipment
Industrial 415V operation
Specification
Manufacturer HMT
Model RM/63
Serial No. 6302
Drilling Capacity (Steel) 63 mm
Drilling Capacity (Cast Iron) 90 mm
Maximum Arm Radius 1790 mm
Spindle Taper Morse Taper No. 5
Spindle Travel 325 mm
Spindle Speeds 40–1700 rpm
Power Feeds 6
Hydraulic Clamping Yes
Approximate Weight 4560 kg
