Stanko 700 x 3000
$12,500.00 AUD

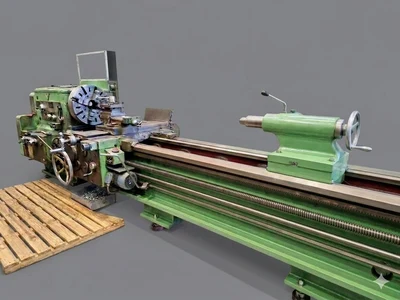

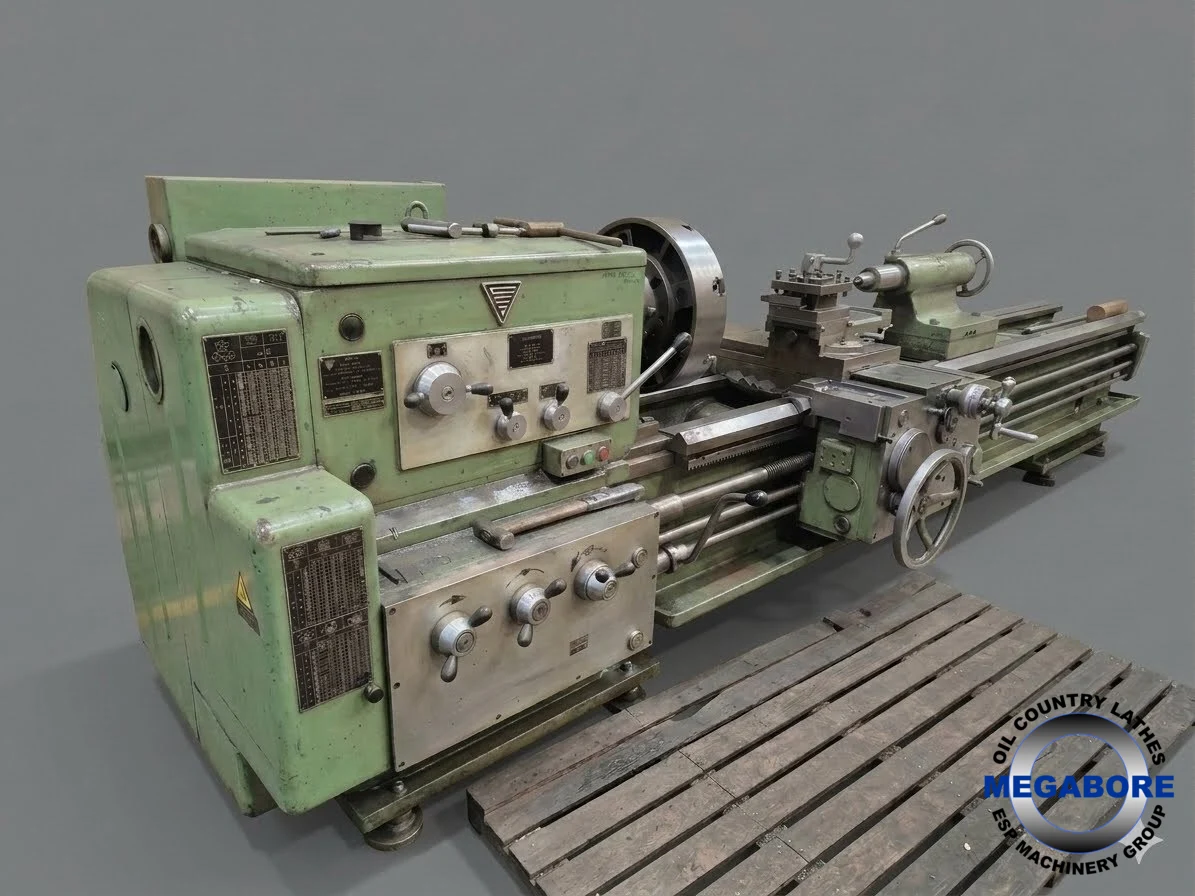

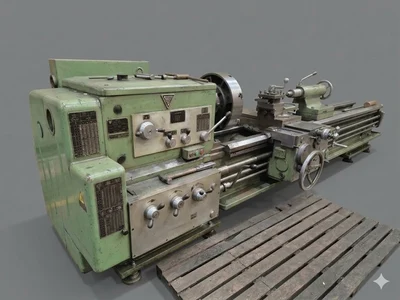

This Stanko 1M636 Heavy Duty Engine Lathe is a robust Soviet-built machine designed for demanding machining applications. Manufactured by Stanko, one of the former USSR's best-known machine tool builders, the 1M636 is renowned for its strength, rigidity and long service life.
With a 700mm swing over bed, 3300mm between centres, and a 450mm four-jaw chuck, this machine is ideally suited to machining large shafts, rollers, hydraulic cylinders and heavy engineering components.
The machine features a heavy cast iron bed, hardened guideways, wide speed and feed selection, power feeds and screwcutting capability, making it suitable for repair workshops, general engineering, mining, agricultural and industrial maintenance applications.
A solid, traditional geared head lathe built for decades of reliable service.
Features
Heavy duty geared headstock
Large capacity spindle
Hardened bedways
Power longitudinal feed
Power cross feed
Metric and imperial threading
Heavy cast iron construction
Four-jaw independent chuck
Coolant system (where fitted)
Item Specification
Manufacturer Stanko
Model 1M636
Type Heavy Duty Centre Lathe
Swing Over Bed 700 mm
Distance Between Centres 3300 mm
Chuck Diameter 450 mm
Serial Number 326S
Construction Heavy cast iron geared head
Spindle Geared headstock
Power Feeds Yes
Screwcutting Yes
Tailstock Heavy duty
Country of Manufacture USSR
Prices are PLUS GST for Australian Buyers
This Stanko 1M636 Heavy Duty Engine Lathe is a robust Soviet-built machine designed for demanding machining applications. Manufactured by Stanko, one of the former USSR's best-known machine tool builders, the 1M636 is renowned for its strength, rigidity and long service life.
With a 700mm swing over bed, 3300mm between centres, and a 450mm four-jaw chuck, this machine is ideally suited to machining large shafts, rollers, hydraulic cylinders and heavy engineering components.
The machine features a heavy cast iron bed, hardened guideways, wide speed and feed selection, power feeds and screwcutting capability, making it suitable for repair workshops, general engineering, mining, agricultural and industrial maintenance applications.
A solid, traditional geared head lathe built for decades of reliable service.
Features
Heavy duty geared headstock
Large capacity spindle
Hardened bedways
Power longitudinal feed
Power cross feed
Metric and imperial threading
Heavy cast iron construction
Four-jaw independent chuck
Coolant system (where fitted)
Metric
| Swing | 629.01 mm |
| Swing Over Cross Slide | 347.98 mm |
| Centers | 2,997.2 mm |
| Spindle Bore | 73.025 mm |
| Power | 14.9 kW |
| Dimensions | Approximate Length 5.2–5.5 m Width 1.4 m Height 1.6 m |
| Weight | 5.5 T |
Item Specification
Manufacturer Stanko
Model 1M636
Type Heavy Duty Centre Lathe
Swing Over Bed 700 mm
Distance Between Centres 3300 mm
Chuck Diameter 450 mm
Serial Number 326S
Construction Heavy cast iron geared head
Spindle Geared headstock
Power Feeds Yes
Screwcutting Yes
Tailstock Heavy duty
Country of Manufacture USSR
Prices are PLUS GST for Australian Buyers
