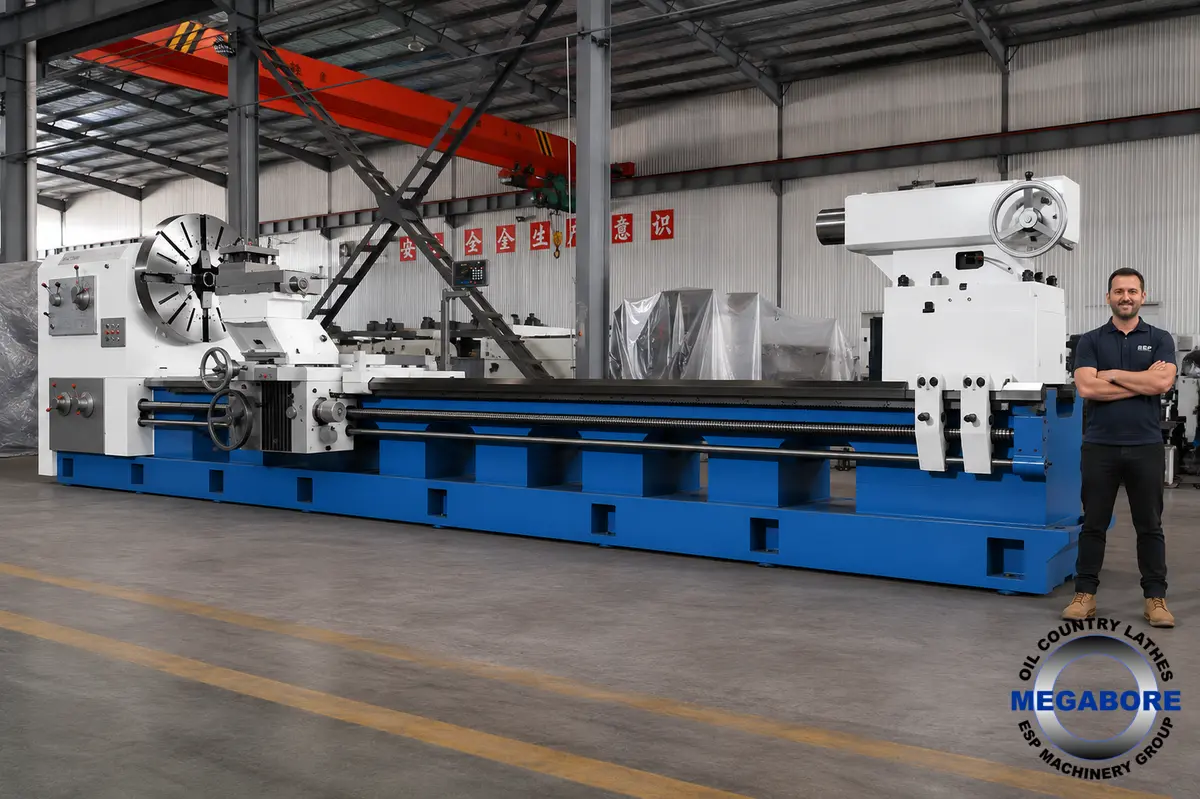

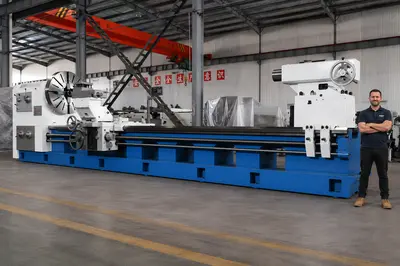

Macturn CW62180 70in Swing X 118in/157in Between centers
$198,000.00 AUD
New
The MACTURN CW62180 is an exceptionally heavy-duty conventional centre lathe designed for machining large shafts, rolls, heavy engineering components and mining equipment.
With an impressive 1800mm swing over the bed and 3000mm between centres, this machine offers the rigidity and capacity required for demanding turning applications. The wide bed construction, powerful geared headstock and heavy-duty carriage provide excellent stability for roughing and finishing large workpieces.
Suitable for:
Mining and quarry equipment
Heavy engineering
Steel mills and rolling mills
Power generation components
Marine engineering
Large shafts, rollers and fabricated components
General engineering workshops requiring high-capacity turning
The MACTURN CW62180 combines robust construction with straightforward manual operation, making it an excellent choice for workshops requiring reliable heavy-duty turning capacity.
Build to Order. Approx. 120 days lead time. can vary according to factory loading.
CW62180×3000 -4000 Heavy Duty Lathe Technical Specifications
Max. swing over bed mm 1800
Max. swing over cross slide mm 1410
Max swing over gap mm 2110
Gap length mm 590
Center distance mm 3000 - 4000
Guideway width mm 970
Max. load capacity T 10
Spindle center height mm 900
Spindle bore mm 130
Spindle taper hole - Metric 140
Spindle forward speed steps - 21
Spindle reversal speed steps - 12
Spindle forward speed range r/min 3.15~315
Spindle reversal speed range r/min 3.5~291
Power of spindle motor KW 22
Z/X axis feed grade - 56
Z axis feed rate per spindle rotation mm/r 0.1~12
X axis feed rate per spindle rotation mm/r 0.05~6
Feed rate of the tool holder per rotation of the spindle mm/r 0.025~3
Carriage raid traverse speed mm/min 3740
Cross slide raid traverse speed mm/min 1870
Metric thread grade/range mm 44 kinds/1 -120
Inch thread grade/range T.P.I 31 kinds/28~1/4
Module thread grade/range mm 45 kinds/0.5 -60
DP thread grade/range T.P.I 38 kinds/1/2~56DP
Traverse of cross slide mm 650
Max. Traverse of turret mm 300
Tailstock quill Diameter mm 220
Tailstock quill Travel mm 300
Tailstock quill Taper - Metric 80
No. of tool stations - 4 stations
Tool shank size mm 45×45
Chuck - K72 -1250 manual 4-jaw chuck
Overall dimensions L×W×H mm 7200 ×2100 ×22000
Machine weight T 16.2
3. Standard Accessories List
Machine casting Self-produced HT300 1 set -
Spindle motor Shanghai Aierda 22KW 1 set -
Inverter Lanhua Huateng 30-37KW 1 set -
Feed box Domestic - 1 set -
Apron box Domestic - 1 set -
X/Z axis lead screw Domestic - 1 set each -
Feed rod Domestic - 1 set -
Chuck Famous domestic brand K72-1000 4-jaw chuck 1 set -
Main electrical components Schneider - 1 set -
Spindle bearing Wazhou Bearing - 1 set -
Cooling water pump Dandong Chuanchuan 125W, 22L/min 1 set -
Work lamp Domestic Halogen lamp 1 set -
Cooling fan Domestic - 1 set -
Steady rest Self-produced Clamping range:240 -700mm 1 set -
Follower rest Self-produced Clamping range:50 -220mm 1 set -
Foundation bolt & nut Domestic M24×700 1 set -
Adjustable pad iron/shim Domestic 300mm 1 set -
Standard fixed center Domestic Morse No.6 1 set -
Chuck: K72-1250 Manual 4-jaw independent chuck
Overall Dimensions & Weight
Overall dimensions (L×W×H): 6200×2100×2200mm
Net machine weight: 15T -16.5T
The manufacturer reserves the right to to make adjustments to the specifications.
