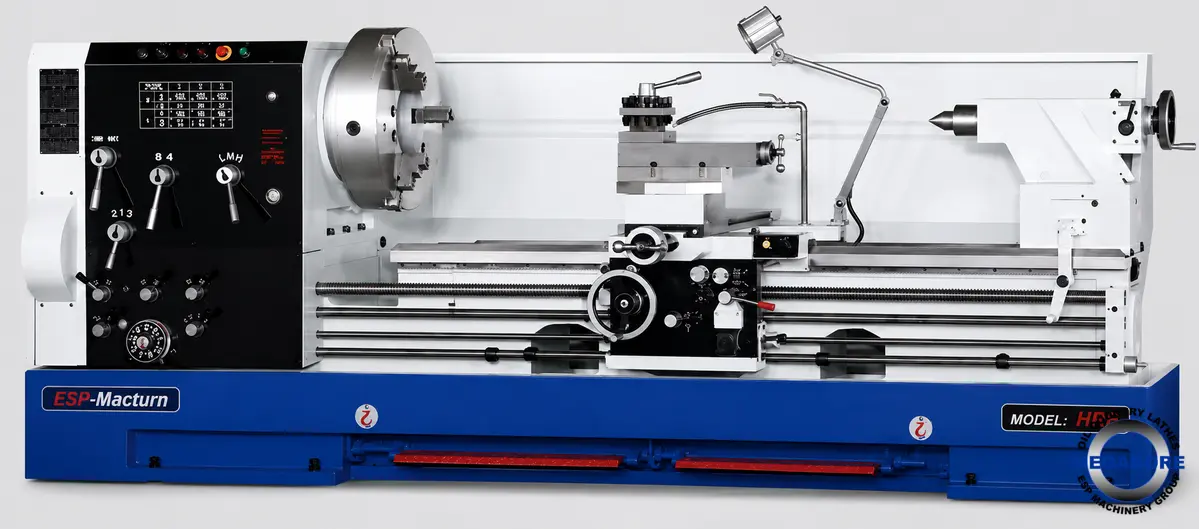

The ESP-Macturn HRE is a robust heavy-duty quality centre lathe designed for precision machining of large shafts, rollers and general engineering components.
Built with a one-piece high-rigidity cast iron bed, hardened and precision-ground bedways, and a geared headstock.
The HRE provides the strength and accuracy required for both repair work and production machining. Its large spindle bore, wide bed and powerful gearbox make it suitable for demanding turning, facing, threading and boring operations across a broad range of industries.
HRE Series HRE-880
CAPACITY
Swing over bed 880mm(34 3/4")
Swing over cross slide 640mm(25 1/4")
Swing over gap 1170mm(46")
Width of gap 482mm(19")
Distance between centers 1100~8000mm(43"~315")
Height of center (over bed) 440mm(17 3/8")
Bed width 458mm(18")
HEADSTOCK
Spindle nose A2-15
Spindle bore 230mm(9")
Number of spindle speed 12
Range of spindle speed 5~450rpm
FEEDS-THREAD
Lead screw diameter 45mm
Leasd screw pitch 2TPI / 12mm
Number of feed changes 28
Longitudinal feed-mm/rev(in.rev) 0.05(0.002")
Cross feed -mm/rev(in.rev) 0.025(0.001")
Inch threads 2~28(36)
Metric threads 0.8~14(65)
D.P no./range 4~56(36)
Module pitch no./range 0.5~7(22)
TOOL SLIDE
Cross slide travel 390mm(15 3/8")
Compound rest travel 240mm(9 1/2")
TAILSTOCK
Quill travel 210mm(8 1/4")
Quill diameter 105mm(4 1/8")
Inner taper of quill MT6
MOTOR
Main motor 20HPX4P
Coolant pump 1/8 HP
Machine dimension
Length/mm(in) 1100G-2900(114")
6000
Included ACCESSORIES
Center sleeve 1 pc
Dead center MT5& MT6 1 pc
Coolant pump 1set
Work light 1 pc
Tool box &tool 1 set
Tool post wrench 1 pc
Steady Rest Ø280mm(11") 1 pc
4 ways rapid traverse device 1 set
Included extra Accessories
25" 3-jaw scroll chuck 1 pc
25" independent chuck 1 pc
Taper turning attachment 1 pc
Follow rest 1 pc
Steady rest Ø420mm(16") 1 pc
Steady rest Ø560mm(22") 1 pc
Rear splash guard 1 pc
DRO
