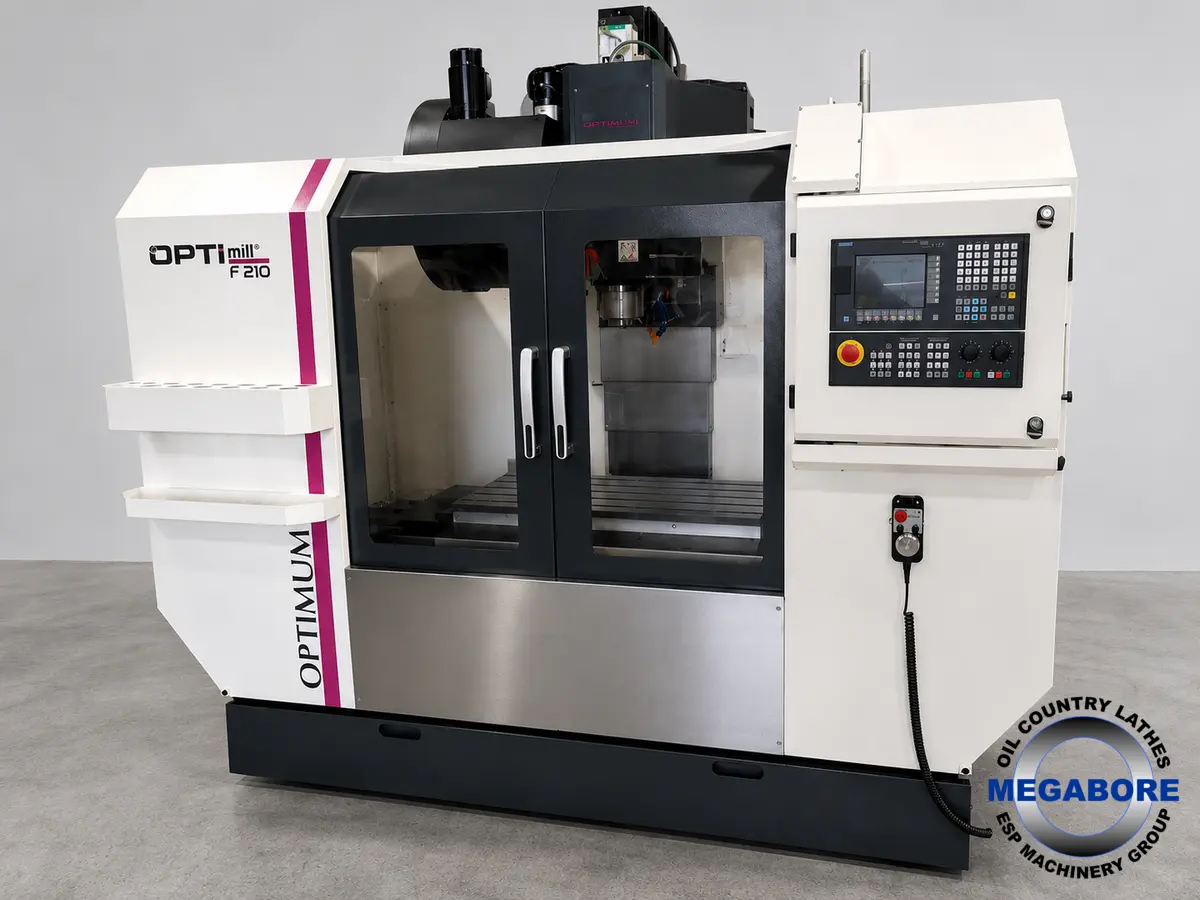

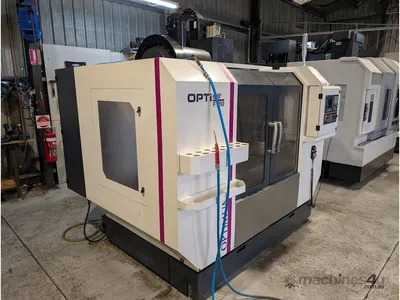

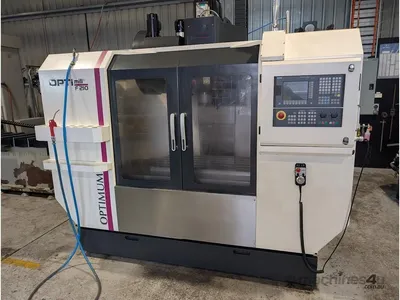

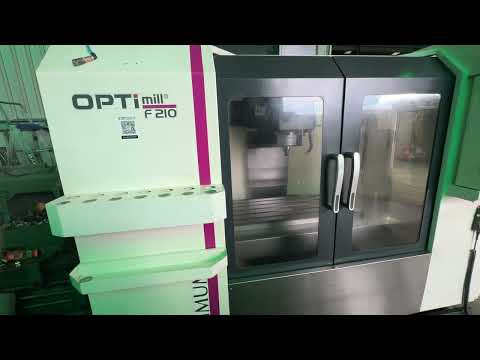

The 2017 The 2017 Optimum OPTImill F210 CNC Milling Machine is a compact, high-precision Vertical Machining Centre (VMC) engineered and designed by Optimum Maschinen Germany GmbH.
Built for high structural rigidity and consistent accuracy, it serves as a robust 3-axis runner ideal for precision engineering, tool and die making, fixture manufacturing, and small to medium batch component production.
Technical Specifications & Attributes Axis Workspace Travel: Features long-travel dimensions with 850 mm on the X-axis, 500 mm on the Y-axis, and 600 mm on the Z-axis. The maximum distance from the spindle nose to the table surface ranges from 85 mm to 685 mm.
Machining Table:
A heavy-duty, finely ground cast-iron work table measuring 1050 mm × 500 mm equipped with precision T-slots and a generous 500 kg maximum load capacity.
Power & System: Driven by a powerful 11 kW (415V 3-Phase) main spindle motor running a premium POSA spindle cartridge. It features a heavy-duty BT40 taper and reaches a maximum speed of 8,000 RPM. Automatic Tool Changer (ATC):
This model includes a 16-station automatic carousel tool changer to handle automated multi-tool cutting sequences (Note: some upgraded regional variations featured a 24-station arm-type ATC). Machines4U +2Guideways & Motion: Equipped with heavy-duty 3-axis linear profile rail guideways with recirculating ball screws and dedicated axis servo motor control for rapid traverse speeds and smooth positioning accuracy engineered and designed by Optimum Maschinen Germany GmbH.
Built for high structural rigidity and consistent accuracy, it serves as a robust 3-axis runner ideal for precision engineering, tool and die making, fixture manufacturing, and small to medium batch component production.
Technical Specifications & Attributes Axis Workspace Travel:
Features long-travel dimensions with 850 mm on the X-axis, 500 mm on the Y-axis, and 600 mm on the Z-axis. The maximum distance from the spindle nose to the table surface ranges from 85 mm to 685 mm. Precision Machining Table:
A heavy-duty, finely ground cast-iron work table measuring 1050 mm × 500 mm equipped with precision T-slots and a generous 500 kg maximum load capacity.
Spindle Power & System:
Driven by a powerful 11 kW (415V 3-Phase) main spindle motor running a premium POSA spindle cartridge. It features a heavy-duty BT40 taper and reaches a maximum speed of 8,000 RPM.

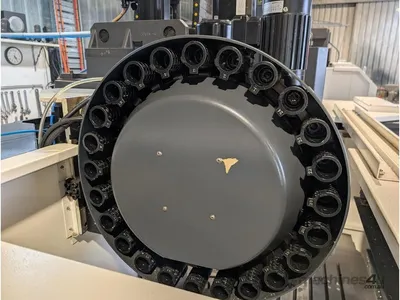

Automatic Tool Changer (ATC):
This model includes a 16-station automatic carousel tool changer to handle automated multi-tool cutting sequences (Note: some upgraded regional variations featured a 24-station arm-type ATC).
Guideways & Motion:
Equipped with heavy-duty 3-axis linear profile rail guideways with recirculating ball screws and dedicated axis servo motor control for rapid traverse speeds and smooth positioning accuracy
Axis Workspace Travel: Features long-travel dimensions with 850 mm on the X-axis, 500 mm on the Y-axis, and 600 mm on the Z-axis.
The maximum distance from the spindle nose to the table surface ranges from 85 mm to 685 mm.

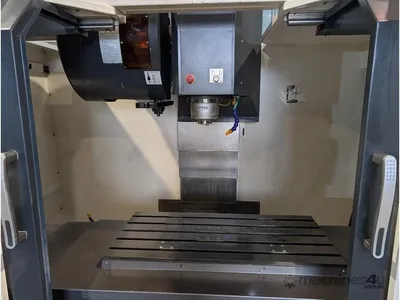

Machining Table:
Work table 1050 mm × 500 mm with precision T-slots
500 kg maximum load capacity.
Power & System:
11 kW (415V 3-Phase) main spindle motor
BT40 taper and reaches a maximum speed of 8,000 RPM.
