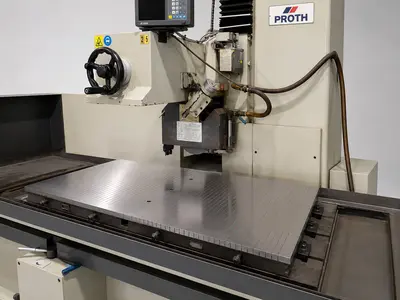

Proth Surface Grinder, Magnetic Chuck 1500mm x 750mm
$49,500.00 AUD

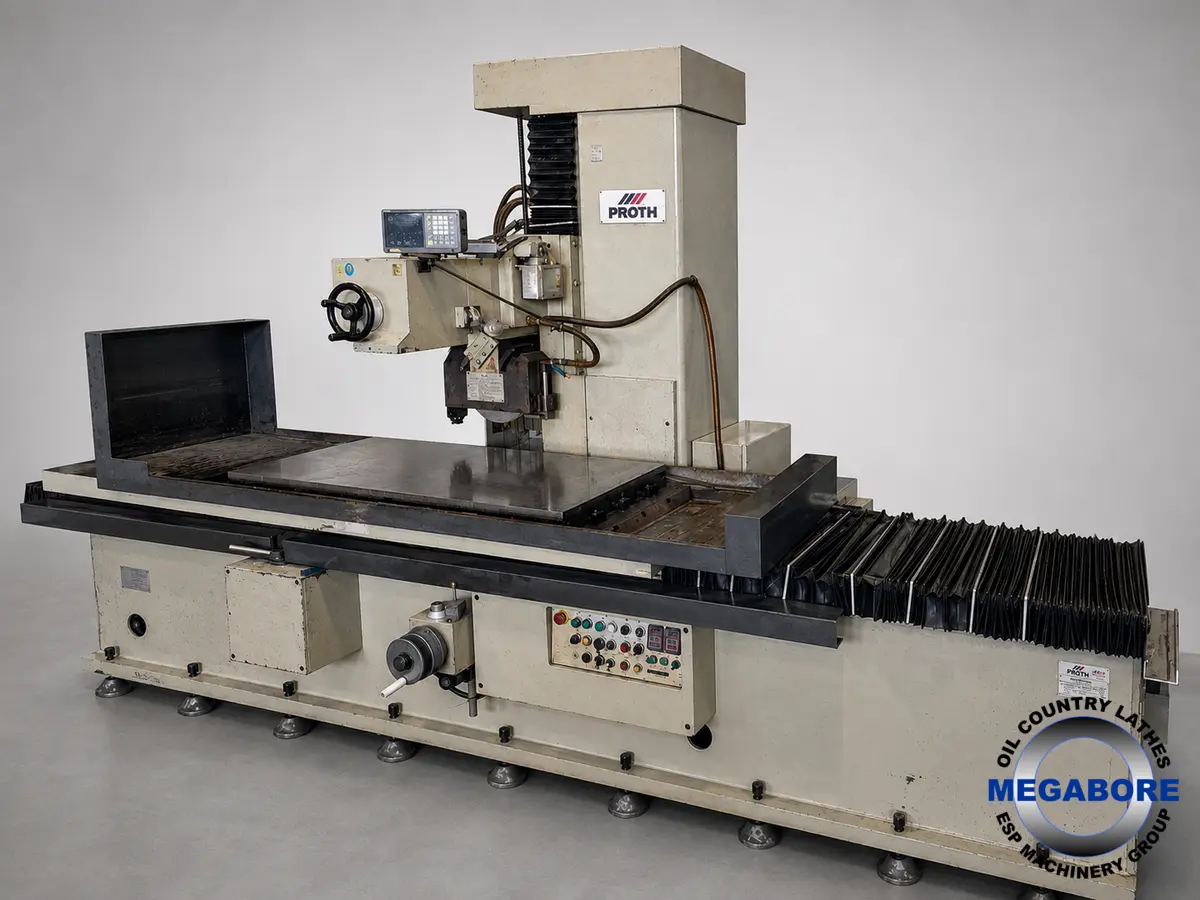

Proth PSGO-75150AHR is a large Taiwanese-built hydraulic reciprocating surface grinder designed for toolroom and precision production work. It is a very capable machine and highly regarded for accuracy and rigidity.
electromagnetic chuck,
coolant and filtration system,
wheel balancing equipment,
Manufacturer: Proth PSGO-75150AHR
Table grinding area: 750mm x 1,500mm
Maximum travel: (Cross × Longitudinal) 810mm x 1,650mm
Maximum grinding height: 522mm
Spindle centre height from table: 700mm (950mm optional)
Table speed (hydraulic): 1–25 m/min
Cross feed (automatic): 0.1–15 mm per stroke
Continuous cross feed: 2,000 mm/min (50 Hz)
Grinding wheel size: 355mm x 50mm x 127mm
Spindle speed: 1,500 rpm (50 Hz)
Spindle motor: 7.5 kW (10 HP)
Hydraulic motor: 5.6 kW (7.5 HP)
Table load capacity: Approximately 2,500 kg
Machine weight: Approx. 11,000 kg
Overall dimensions: Approx. 6.0m x 2.55m x 2.6m
Prices are PLUS GST for Australian Buyers
Proth PSGO-75150AHR is a large Taiwanese-built hydraulic reciprocating surface grinder designed for toolroom and precision production work. It is a very capable machine and highly regarded for accuracy and rigidity.
electromagnetic chuck,
coolant and filtration system,
wheel balancing equipment,
Metric
| Table-W | 29.528" |
| Table-L | 59.055" |
| Horz/Vert | Horz |
| Power | 10.1 hp |
| Grinding Wheel Width | 1.9685" |
| Grinding Wheel Dia. | 13.976" |
| Dimensions | Approx. 6.0m x 2.55m x 2.6m |
| Weight | 11000kg |
Manufacturer: Proth PSGO-75150AHR
Table grinding area: 750mm x 1,500mm
Maximum travel: (Cross × Longitudinal) 810mm x 1,650mm
Maximum grinding height: 522mm
Spindle centre height from table: 700mm (950mm optional)
Table speed (hydraulic): 1–25 m/min
Cross feed (automatic): 0.1–15 mm per stroke
Continuous cross feed: 2,000 mm/min (50 Hz)
Grinding wheel size: 355mm x 50mm x 127mm
Spindle speed: 1,500 rpm (50 Hz)
Spindle motor: 7.5 kW (10 HP)
Hydraulic motor: 5.6 kW (7.5 HP)
Table load capacity: Approximately 2,500 kg
Machine weight: Approx. 11,000 kg
Overall dimensions: Approx. 6.0m x 2.55m x 2.6m
Prices are PLUS GST for Australian Buyers
