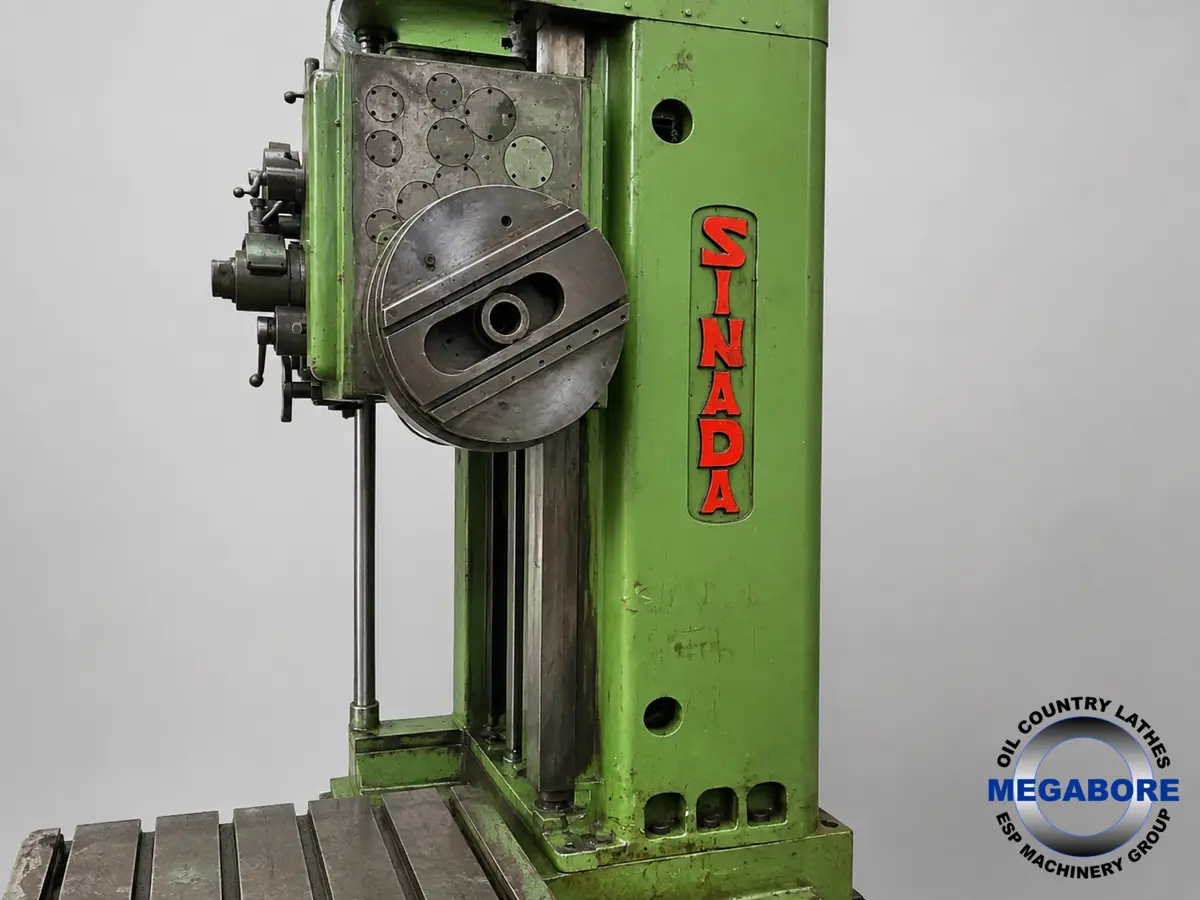

The SINADA SB-80 is a heavy-duty horizontal boring and milling machine designed for accurate machining of large fabricated and cast components. Featuring an 80mm spindle, ISO 40 taper and a full 360° rotary table, it is well suited to precision boring, milling, drilling and facing operations in engineering workshops, maintenance facilities and heavy manufacturing.
Features
Heavy-duty 80mm boring spindle
ISO 40 tooling system
Precision 360° rotary table
Large 2-tonne table capacity
Suitable for boring, milling, drilling and facing
Ideal for machining large fabricated and cast components
Robust industrial construction
Excellent machine for general engineering, mining and maintenance workshops
Item Approximate Specification
Spindle Diameter 80 mm
Spindle Taper ISO 40
Spindle Travel 450–500 mm
Table Size Approximately 1,000 × 1,120 mm
Table Load Capacity 2,000–3,000 kg
X Travel 1,000–1,250 mm
Y Travel 900–1,000 mm
Z Travel 700–800 mm
Table Rotation 360°
Spindle Speeds Approximately 12–1,500 rpm
Main Motor 7.5–11 kW
Machine Weight Approximately 6.5–8 tonnes
