MEGABORE CNC 50″ SWING × 3,000 mm × 21″ BORE Ex STOCK
$475,000.00 USD
New

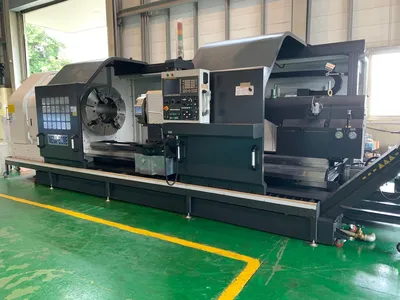

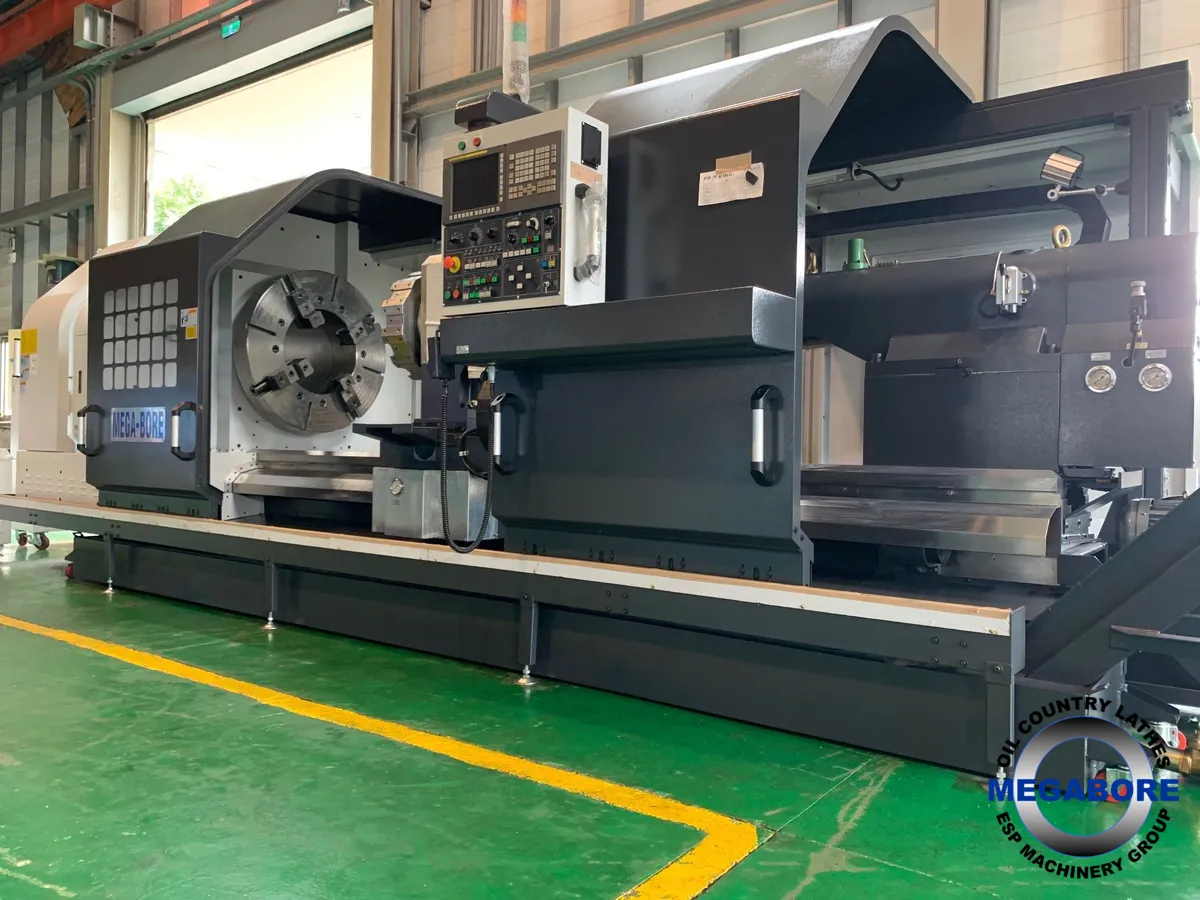

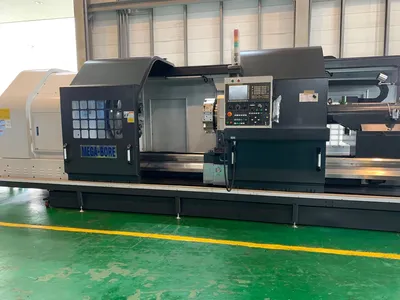

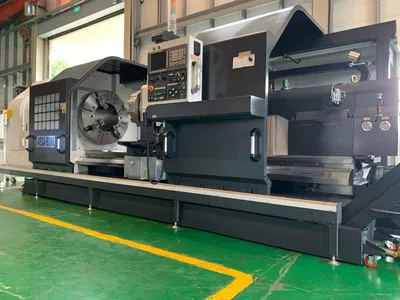

We currently have ex-stock and ready for immediate delivery a new Megabore LC-50 a large-capacity, flat-bed heavy CNC lathe fitted with front and rear swarf conveyors.
This machine is suited to oil country work, large tubular components, heavy turning and boring.

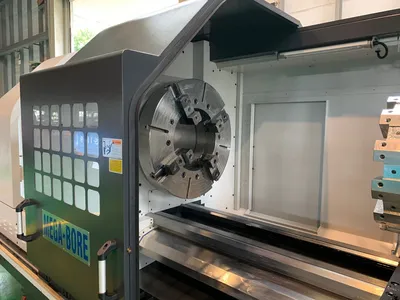

It has 3,000 mm between centers and a 21″ hollow spindle, with a 40″ all-steel four-jaw chuck at each end of the spindle.

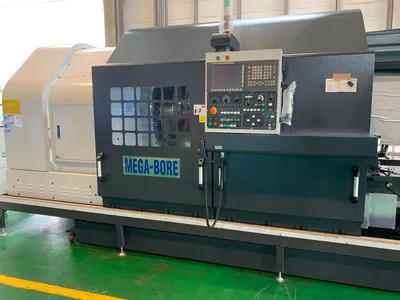

A FANUC 0i-TF Plus CNC control provides Manual Guide-i, thread repair and arbitrary-speed threading functions. The machine is equipped with a Baruffaldi 12-station turret, a programmable hydraulic tailstock and a fixed steady rest.
Please note if this machine becomes un-available another machine will be approx. 4 months delivery.
MEGABORE LC50x3Mx21" BORE CNC LATHE
2 X 40” ALL STEEL 4-JAW CHUCK WITH 21” BORE.
2 SETS OF LONG REACH HARD JAWS (320L).
FANUC CNC CONTROLLER MODEL Oi-TF PLUS
MANUAL GUIDE-i WITH THREAD REPAIR FUNCTION
ARBITRARY SPEED THREADING FUNCTION
BARUFFALDI 12 STATION TURRET.
SPINDLE SPEED 0 ~ 300 RPM.
1 X FIXED MANUAL STEADY REST 80MM – 440MM
3 X BORING BAR TOOL HOLDERS SIZE Ø40, Ø50, Ø60MM
3 X TURNING TOOL HOLDERS SIZE 32 x 32 MM
1 X PROGRAMMABLE HYDRAULIC TAILSTOCK 235MM MT6
75KVA 3 PHASE MULTI TAP TRANSFORMER
MACHINE OPERATION & MAINTENANCE MANUAL
We currently have ex-stock and ready for immediate delivery a new Megabore LC-50 a large-capacity, flat-bed heavy CNC lathe fitted with front and rear swarf conveyors.
This machine is suited to oil country work, large tubular components, heavy turning and boring.
It has 3,000 mm between centers and a 21″ hollow spindle, with a 40″ all-steel four-jaw chuck at each end of the spindle.
A FANUC 0i-TF Plus CNC control provides Manual Guide-i, thread repair and arbitrary-speed threading functions. The machine is equipped with a Baruffaldi 12-station turret, a programmable hydraulic tailstock and a fixed steady rest.
Please note if this machine becomes un-available another machine will be approx. 4 months delivery.
Metric
| Swing | 50.197" |
| Centers | 118.11" |
| Spindle Bore | 533.4 mm |
| Power | 29.8 kW |
| Control | CNC (Fanuc 0i-TC CNC Control (incl. manual guide i)) |
MEGABORE LC50x3Mx21" BORE CNC LATHE
2 X 40” ALL STEEL 4-JAW CHUCK WITH 21” BORE.
2 SETS OF LONG REACH HARD JAWS (320L).
FANUC CNC CONTROLLER MODEL Oi-TF PLUS
MANUAL GUIDE-i WITH THREAD REPAIR FUNCTION
ARBITRARY SPEED THREADING FUNCTION
BARUFFALDI 12 STATION TURRET.
SPINDLE SPEED 0 ~ 300 RPM.
1 X FIXED MANUAL STEADY REST 80MM – 440MM
3 X BORING BAR TOOL HOLDERS SIZE Ø40, Ø50, Ø60MM
3 X TURNING TOOL HOLDERS SIZE 32 x 32 MM
1 X PROGRAMMABLE HYDRAULIC TAILSTOCK 235MM MT6
75KVA 3 PHASE MULTI TAP TRANSFORMER
MACHINE OPERATION & MAINTENANCE MANUAL
