ESP Macbore CNC 1600mm Swing with Fanuc control
$195,000.00 AUD
New

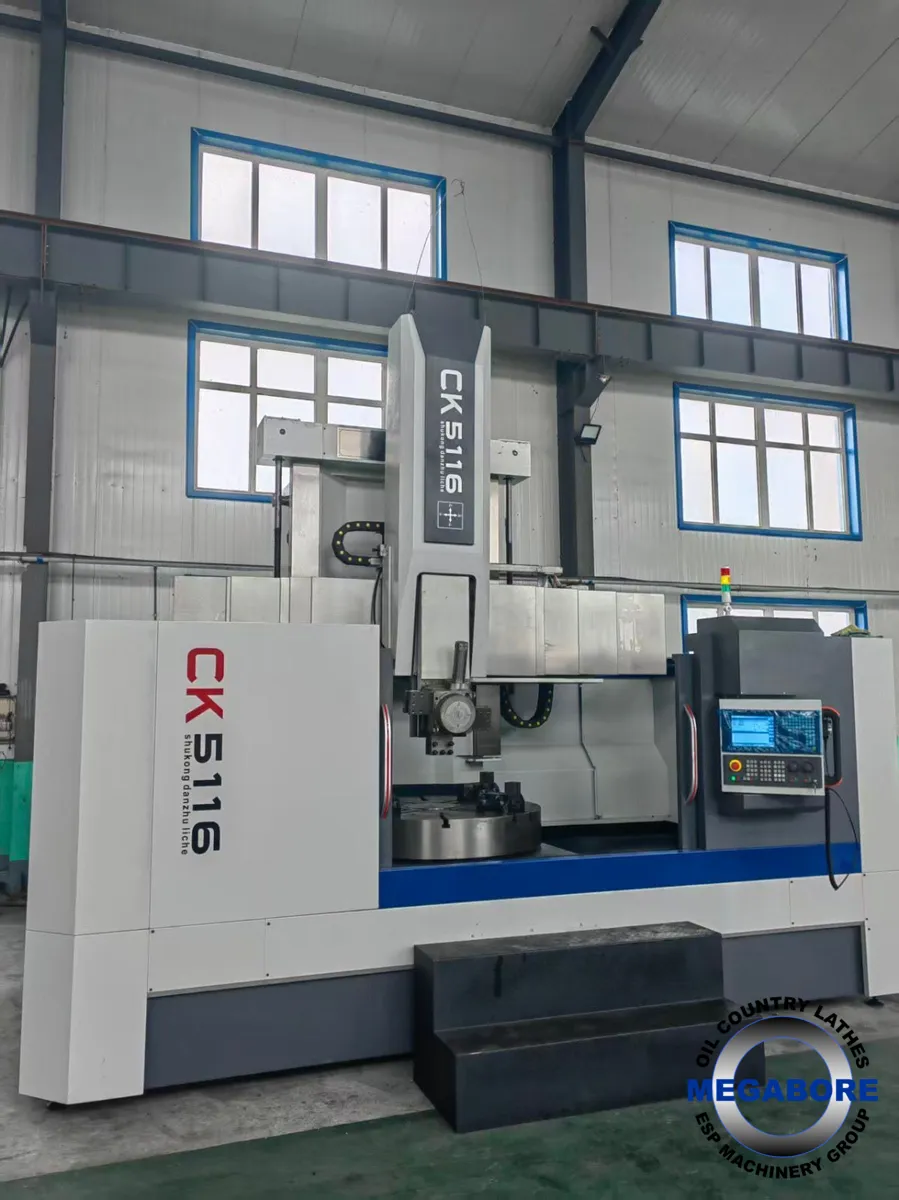

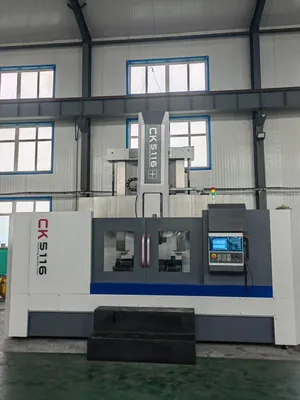

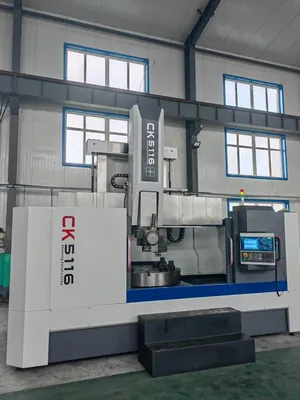

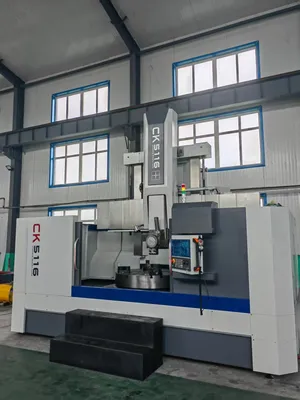

Brand-new ESP-MACBORE CK5116 vertical boring mill. Featuring a 59" table diameter, 63" swing, 39" work height, and 40 HP power.
SIEMENS 828D system, main servo motor,
4‑gear stepless speed change,
4‑position electric turret,
Semi ‑protective guarding
Machine complete with chip conveyor and cooling system.
Max. turning diameter of vertical tool post: 1600
mm
Worktable diameter: 1500 mm
Max. workpiece height: 1000 mm
Max. workpiece weight: 6 t
Worktable speed range: 1‑160 r/min
Worktable speed stages: 4‑gear stepless
Max. worktable torque: 30 KN·m
Tool post feed stages: stepless
Max. cutting force of vertical tool post: 25 KN
Ram horizontal travel: 920 mm
Ram vertical travel: 800 mm
Cross beam travel: 650 mm
Tool post feed rate range: 0.1‑500 mm/min
Rapid traverse speed of tool post: 2000 mm/min
Cross ‑beam lifting speed: 440 mm/min
Main motor power: 30 kW
CNC system: FANUC
CNC axis: X, Z 2‑axis simultaneous interpolation
Machining dimensional accuracy: IT7
Overall machine dimension: Subject to actual size
Approx. machine weight: 16 t
Brand-new ESP-MACBORE CK5116 vertical boring mill. Featuring a 59" table diameter, 63" swing, 39" work height, and 40 HP power.
SIEMENS 828D system, main servo motor,
4‑gear stepless speed change,
4‑position electric turret,
Semi ‑protective guarding
Machine complete with chip conveyor and cooling system.
Metric
| Table Dia | 1,500 mm |
| Swing | 62.992" |
| Work Ht-U/R | 1,000 mm |
| Power | 30 kW |
| RPM | 160 RPM |
| Control | CNC (Fanuc) |
| Dimensions | TBA |
| Weight | 35274 |
Max. turning diameter of vertical tool post: 1600
mm
Worktable diameter: 1500 mm
Max. workpiece height: 1000 mm
Max. workpiece weight: 6 t
Worktable speed range: 1‑160 r/min
Worktable speed stages: 4‑gear stepless
Max. worktable torque: 30 KN·m
Tool post feed stages: stepless
Max. cutting force of vertical tool post: 25 KN
Ram horizontal travel: 920 mm
Ram vertical travel: 800 mm
Cross beam travel: 650 mm
Tool post feed rate range: 0.1‑500 mm/min
Rapid traverse speed of tool post: 2000 mm/min
Cross ‑beam lifting speed: 440 mm/min
Main motor power: 30 kW
CNC system: FANUC
CNC axis: X, Z 2‑axis simultaneous interpolation
Machining dimensional accuracy: IT7
Overall machine dimension: Subject to actual size
Approx. machine weight: 16 t
