HAFCO METALMASTER AL-336D | Lathes, Engine, Center
$4,250.00 AUD

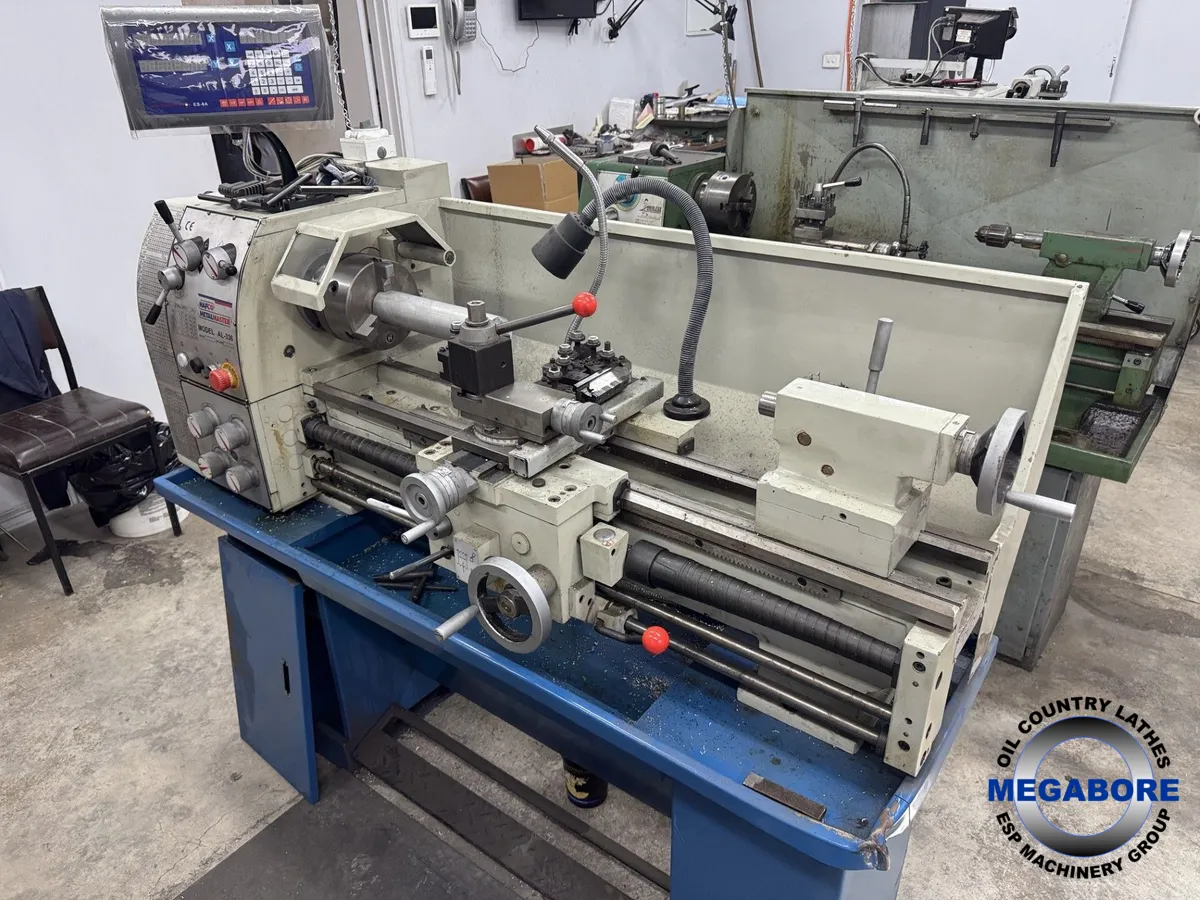

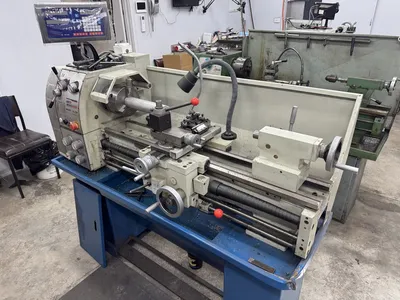

HAFCO METALMASTER AL-336D centre lathe (240V Single phase).
300mm swing x 900mm between centres.
38mm spindle bore
18 speeds 65–1,810rpm.
2 HP motor. Steady Rests. DRO.
D1-4 Camlock spindle with 3 Jaw chuck.
Foot Brake.
Specification Details
Swing over bed 300 mm
Distance between centres 900 mm
Swing over cross-slide 180 mm
Swing in gap 450 mm
Spindle bore 38 mm
Spindle nose D1-4 Camlock
Spindle speeds 18 speeds, 65–1,810 rpm
Motor power 1.5 kW / 2 HP
Power supply 240 V, single-phase, 10 A
Bed width 180 mm
Centre height 150 mm
Headstock taper MT5
Tailstock taper MT3
Cross-slide travel 170 mm
Compound-slide travel 75 mm
Metric threading 32 pitches, 0.4–7 mm
Imperial threading 36 pitches, 4–60 TPI
Net weight 595 kg
HAFCO METALMASTER AL-336D centre lathe (240V Single phase).
300mm swing x 900mm between centres.
38mm spindle bore
18 speeds 65–1,810rpm.
2 HP motor. Steady Rests. DRO.
D1-4 Camlock spindle with 3 Jaw chuck.
Foot Brake.
Metric
| Swing | 300 mm |
| Swing Over Cross Slide | 180 mm |
| Centers | 900 mm |
| Spindle Bore | 38 mm |
| Power | 1.5 kW |
| RPM | 1,810 RPM |
Specification Details
Swing over bed 300 mm
Distance between centres 900 mm
Swing over cross-slide 180 mm
Swing in gap 450 mm
Spindle bore 38 mm
Spindle nose D1-4 Camlock
Spindle speeds 18 speeds, 65–1,810 rpm
Motor power 1.5 kW / 2 HP
Power supply 240 V, single-phase, 10 A
Bed width 180 mm
Centre height 150 mm
Headstock taper MT5
Tailstock taper MT3
Cross-slide travel 170 mm
Compound-slide travel 75 mm
Metric threading 32 pitches, 0.4–7 mm
Imperial threading 36 pitches, 4–60 TPI
Net weight 595 kg
