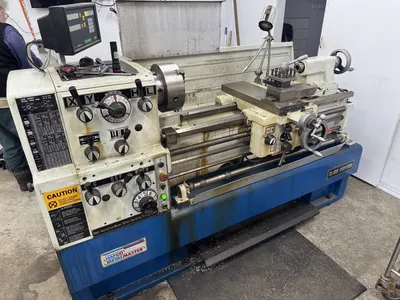

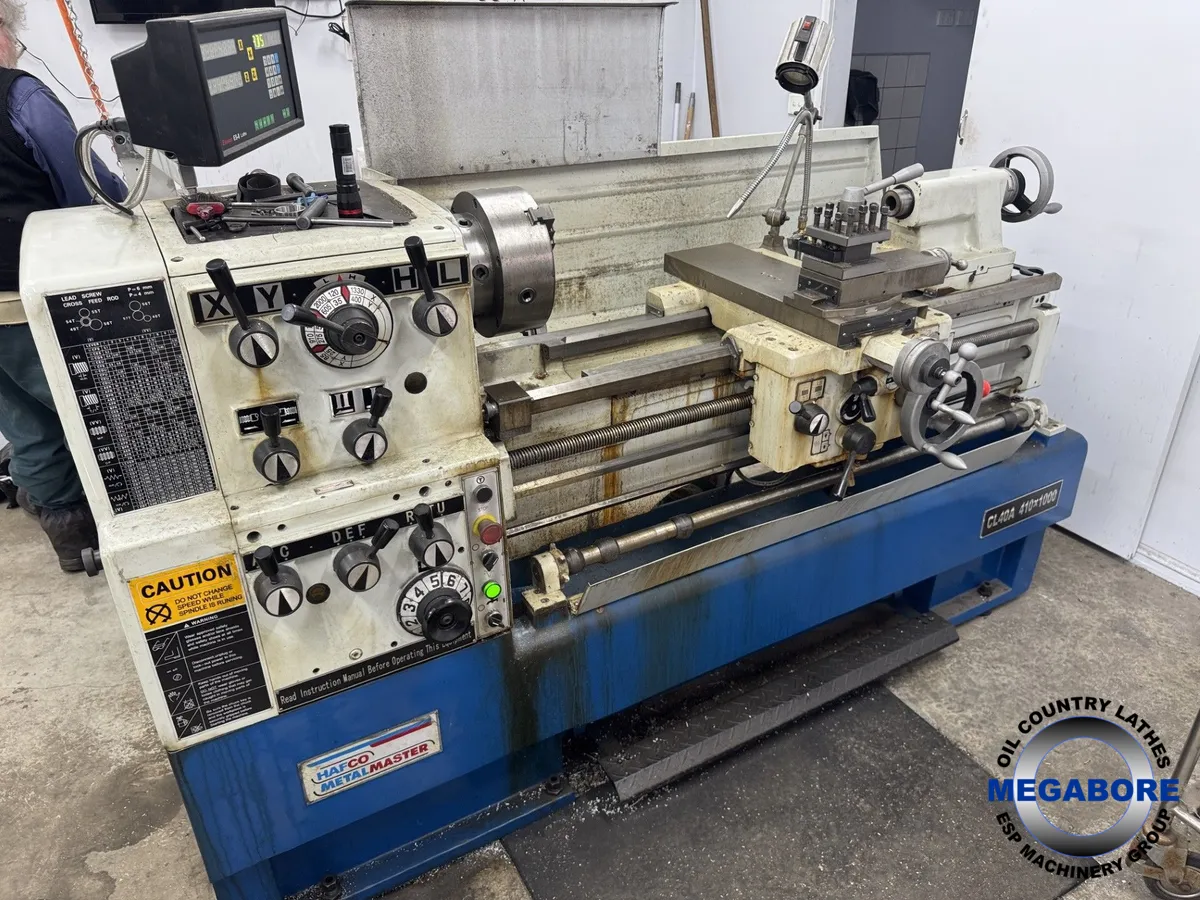

HAFCO METALMASTER CL-40A | Lathes, Engine, Center
$9,800.00 AUD
Used HAFCO METALMASTER CL-40A centre lathe, featuring 410 mm swing, 1,000 mm between centres, 58 mm spindle bore and 12 speeds from 25–2,000 rpm.
Specification Details
Make HAFCO METALMASTER
Model CL-40A
Type Centre lathe
Swing over bed 410 mm
Distance between centres 1,000 mm
Swing over cross-slide 224 mm
Swing in gap 640 mm
Spindle bore 58 mm
Spindle nose D1-6 Camlock
Spindle speeds 12 speeds, 25–2,000 rpm
Motor 5.5 kW / 7.5 HP
Power supply 415 V, three-phase
Bed width 300 mm
Listed net weight 2,000 kg
Used HAFCO METALMASTER CL-40A centre lathe, featuring 410 mm swing, 1,000 mm between centres, 58 mm spindle bore and 12 speeds from 25–2,000 rpm.
Metric
| Swing | 410 mm |
| Swing Over Cross Slide | 224 mm |
| Centers | 1,000 mm |
| Spindle Bore | 58 mm |
| Power | 5.6 kW |
| RPM | 2,000 RPM |
| Weight | 2,000 |
Specification Details
Make HAFCO METALMASTER
Model CL-40A
Type Centre lathe
Swing over bed 410 mm
Distance between centres 1,000 mm
Swing over cross-slide 224 mm
Swing in gap 640 mm
Spindle bore 58 mm
Spindle nose D1-6 Camlock
Spindle speeds 12 speeds, 25–2,000 rpm
Motor 5.5 kW / 7.5 HP
Power supply 415 V, three-phase
Bed width 300 mm
Listed net weight 2,000 kg
