Macbore Vertical Lathe 2000mm swing x 1200mm Manual
$164,000.00 AUD
New

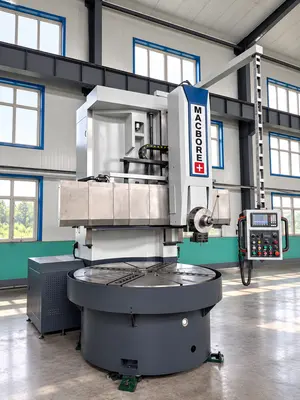

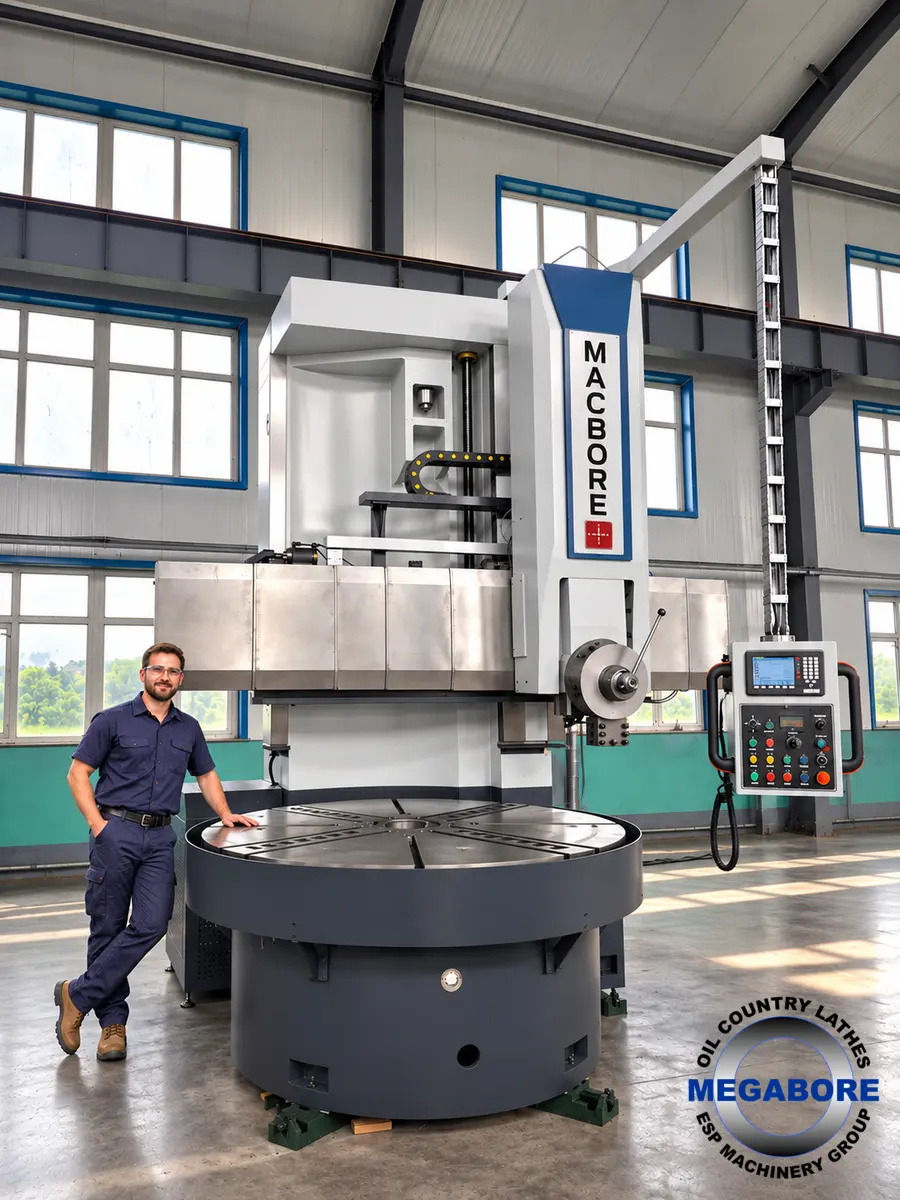

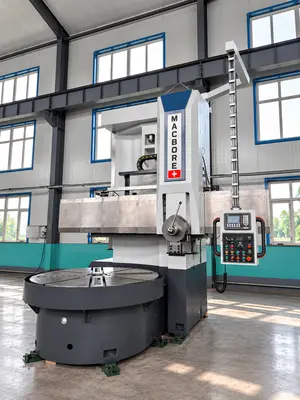

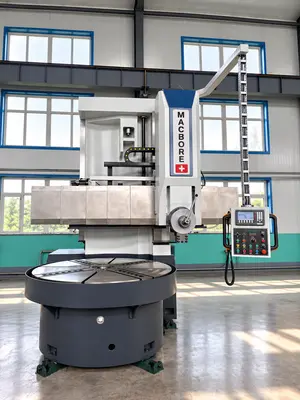

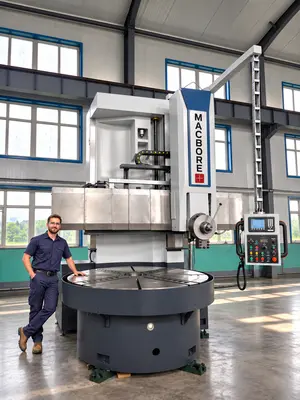

NEW DVT5120 HEAVY DUTY VERTICAL BORING MILL
2000mm Turning Diameter – 1800mm Table – 8 Tonne Capacity
New heavy-duty single-column Vertical Boring Mill suitable for machining large diameter components including flanges, rings, gear blanks and heavy engineering workpieces.
Features a powerful 30kW main motor with 16-stage spindle speed selection, stepless tool feeds, ball screw driven X and Z axes, manual pentagonal turret and adjustable cross rail.
Due to the size of this machine, how the machine is delivered will be determined by the location of client.
1. I boxes straight from the factory client assembles.
2. Delivered from the factory ESP Engineers will assemble on Clients floor.
3. ESP will assemble at our facility. Local delivery only.
The machine will be packed into 4 packages and shipped in one 40HQ container. Below are the package details:
Bed: 3870×2000×2000 mm
Cross beam: 3660×1720×140 mm
Worktable: 2100×2000×1300 mm
Motor: 2000×1480×1300 mm
Available to Order – Enquire for Pricing and Delivery to your door or assembled.
Contact ESP Machinery Australia for further information, and quotations.
Maximum turning diameter: 2000mm
Table diameter: 1800mm
Maximum workpiece height: 1200mm
Maximum table load: 8000kg
Table speeds: 3.2–100 RPM, 16 stages
Maximum table torque: 30kNm
Main motor: 30kW
Maximum cutting force: 22kN
Ram horizontal travel: 1150mm
Ram vertical travel: 800mm
Cross rail travel: 850mm
Tool feeds: Stepless, 0.1–500mm/min
Rapid traverse: 2000mm/min
Cross rail lifting speed: 440mm/min
Tool shank section: 30 × 40mm
Approximate machine weight: 18,000kg
Overall dimensions: 3300 × 3000 × 3300mm
Jaws, DRO, 3 turning holders, 3 Boring Bars.
NEW DVT5120 HEAVY DUTY VERTICAL BORING MILL
2000mm Turning Diameter – 1800mm Table – 8 Tonne Capacity
New heavy-duty single-column Vertical Boring Mill suitable for machining large diameter components including flanges, rings, gear blanks and heavy engineering workpieces.
Features a powerful 30kW main motor with 16-stage spindle speed selection, stepless tool feeds, ball screw driven X and Z axes, manual pentagonal turret and adjustable cross rail.
Due to the size of this machine, how the machine is delivered will be determined by the location of client.
1. I boxes straight from the factory client assembles.
2. Delivered from the factory ESP Engineers will assemble on Clients floor.
3. ESP will assemble at our facility. Local delivery only.
The machine will be packed into 4 packages and shipped in one 40HQ container. Below are the package details:
Bed: 3870×2000×2000 mm
Cross beam: 3660×1720×140 mm
Worktable: 2100×2000×1300 mm
Motor: 2000×1480×1300 mm
Available to Order – Enquire for Pricing and Delivery to your door or assembled.
Contact ESP Machinery Australia for further information, and quotations.
Metric
| Table Dia | 1,800.1 mm |
| Swing | 2,000 mm |
| Work Ht-U/R | 1,199.9 mm |
| Power | 30 kW |
| RPM | 100 RPM |
| Dimensions | 3300 × 3000 × 3300 |
| Weight | 18000 |
Maximum turning diameter: 2000mm
Table diameter: 1800mm
Maximum workpiece height: 1200mm
Maximum table load: 8000kg
Table speeds: 3.2–100 RPM, 16 stages
Maximum table torque: 30kNm
Main motor: 30kW
Maximum cutting force: 22kN
Ram horizontal travel: 1150mm
Ram vertical travel: 800mm
Cross rail travel: 850mm
Tool feeds: Stepless, 0.1–500mm/min
Rapid traverse: 2000mm/min
Cross rail lifting speed: 440mm/min
Tool shank section: 30 × 40mm
Approximate machine weight: 18,000kg
Overall dimensions: 3300 × 3000 × 3300mm
Jaws, DRO, 3 turning holders, 3 Boring Bars.
